Assembly and Construction


Click on thumbnail images for full-size picture.

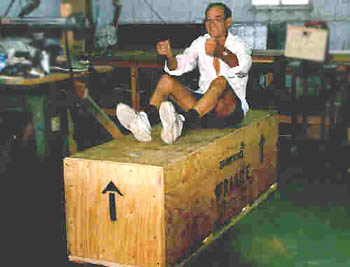

Zodiac CH 601 airframe kit First things first: Taking delivery of the crated kit.
Typically, the complete kit is shipped in a single crate: Approx. 8 ft. long x 4 ft. wide x 4 ft. height (about 800 lbs).

Details on shipping or picking up your kit

Zodiac CH 601 airframe kit A complete ZODIAC kit crated and delivered (to New Zealand).
This kit is not quite ready for flying...

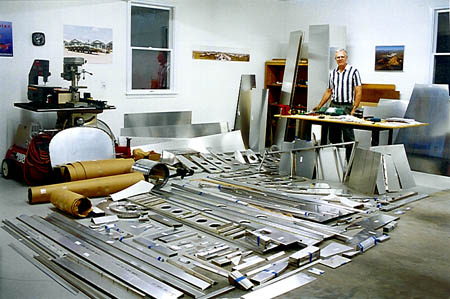

Zodiac CH 601 airframe kit A ZODIAC builder inventories the complete airframe kit in his workshop.

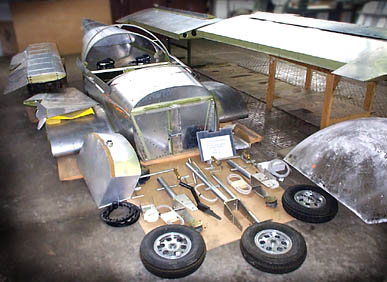

Zodiac CH 601 airframe kit The complete ZODIAC airframe kit, including the Rotax 912 engine cowl (on left).
Zodiac CH 601 airframe kit Kids from EAA Chapter 229's Falcon Wings project working on the horizontal tail.
The kids finishing the horizontal tail section.

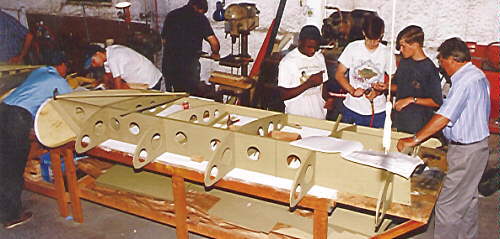

The airport kids working on the right wing.
If they can do it, so can you!
Zodiac CH 601 airframe kit ZODIAC CH 601 HD wing assemblies.
ZODIAC wing assembly - ready for rear top skin.

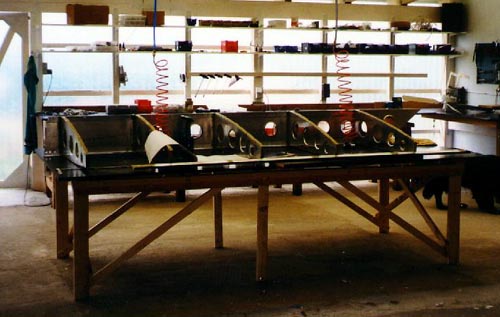

Center wing section (upside down on workbench).

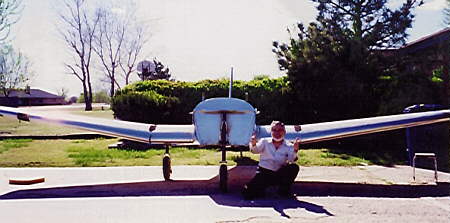

ZODIAC spar assembly (pilot not included).
ZODIAC CH 601 HD internal wing assembly.

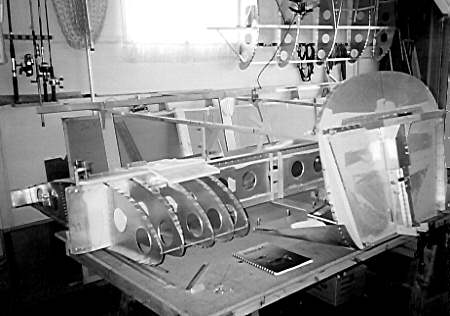

Zodiac CH 601 airframe kit ZODIAC center wing / cabin assembly.

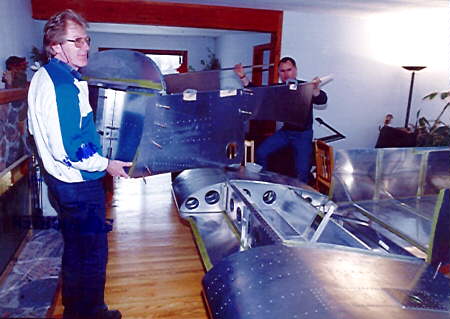

Joining the firewall / cabin sides to the center wing section
Assembled fuselage, wings and tail sections... the Zodiac Kit
Super ZODIAC CH 601 HDS, assembled airframe.

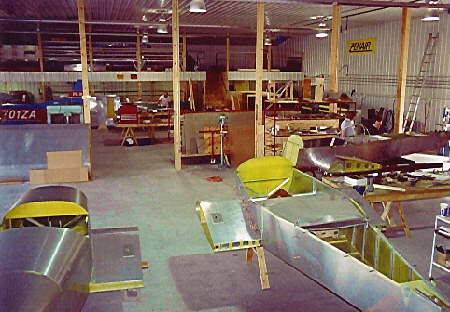

Factory-jigged fuselage assemblies come together at the Zenith Aircraft factory.

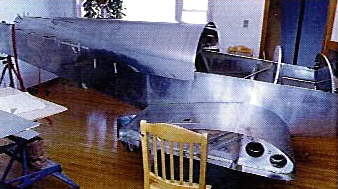

ZODIAC fuselage assembly (in living room!).
d827-1.jpg (36174 bytes) Getting the completed center section of the aircraft ready for trailering to the airport.

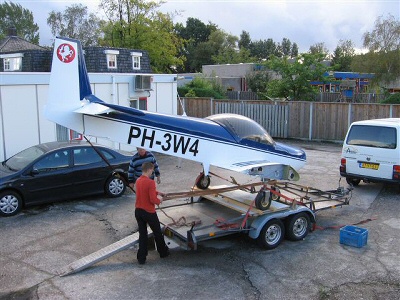

Zodiac fuselage assembly on a flat bed trailer Transporting the painted fuselage from the paintshop on a flatbed trailer.
weight&balance1.jpg (26034 bytes) Weighing the finished aircraft on scales (weight & balance).

Note: Many of these images show customer-built aircraft, some of which have been modified without the designer's specific approval. Modifications will affect the specifications and performance of the aircraft.
