STOL CH 701 ENGINE INSTALLATION PHOTOS: Page 1 of 2

The Rotax 912 series engine (80 or 100 hp) is the standard recommended powerplant for the STOL CH 701.  Other engine installations are not directly supported by Zenith Aircraft Co., and will affect the performance and specifications of the aircraft. Suitable engines for the STOL CH 701: 50 - 100 hp, up to 185 lbs. installed weight.

Note: The STOL CH 701 is probably the most copied sport aircraft on the market today, and there are a number of Rotax firewall forward installations being marketed as "improved" or lower cost alternatives, many with undemonstrated performance claims, and some with "grey" market (out of warranty) engines.

Rotax 912S ring mount - view of right side NEW 100-hp Rotax 912S Firewall Forward Installation Package with rear ring engine mount for smoother operation.

The new installation includes a new fiberglass cowl (pictured left).

Rotax 912S fiberglass cowl
NEW 100-hp Rotax 912S Firewall Forward Installation NEW 100-hp Rotax 912S Firewall Forward Installation Package with rear ring engine mount for smoother operation.

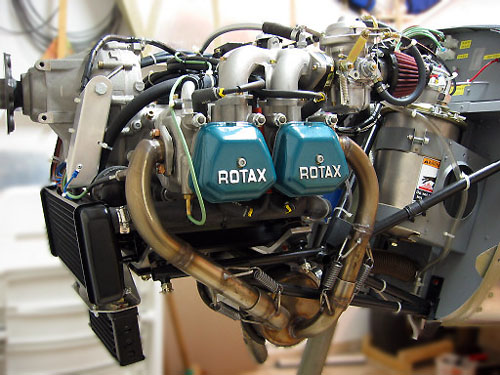

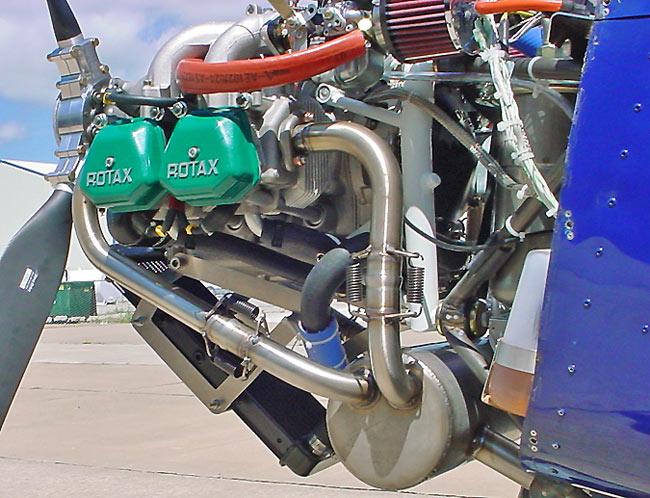

Rotax 912S The new Rotax 912S installation uses a new stainless steel exhaust system, new radiator cooling system, and is equipped with a Warp Drive three-blade ground adjustable pitch propeller with fiberglass spinner.
NEW 100-hp Rotax 912S Firewall Forward Installation Rotax 912S (100-hp) Installation
Roax 912S Engine Installation Workshop

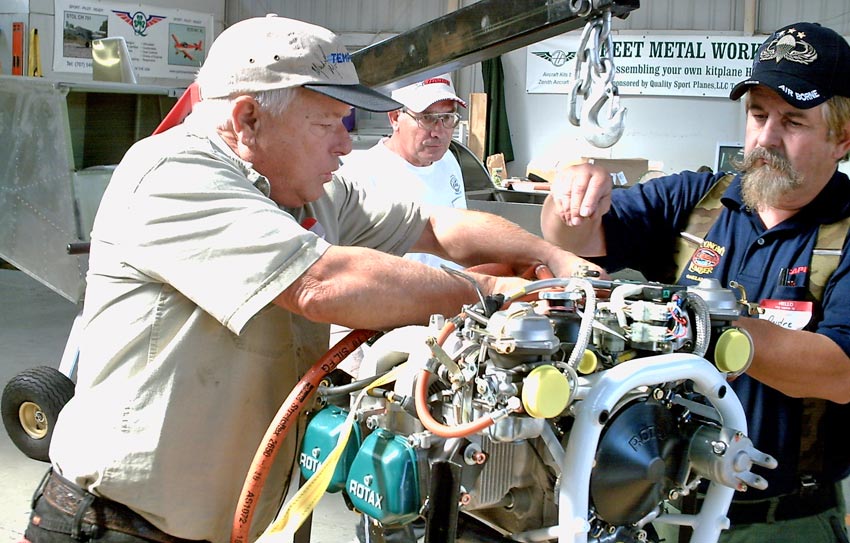

Rotax 912S Engine Installation Workshop hosted by Quality Sport Planes (QSP) in California (October 2007). The hands-on workshop assists builders with the steps required to properly install the Rotax 912S engine with new rear ring mount, including cooling, oil, fuel and electrical systems. The entire engine installation process was videotaped by HomebuiltHelp.com to share with other builders.

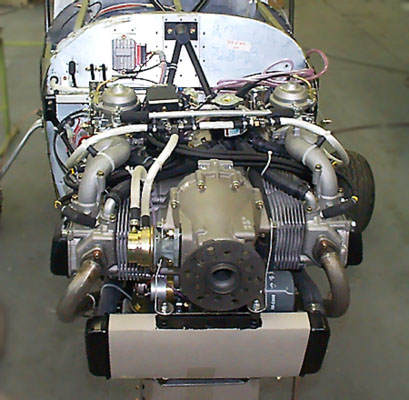

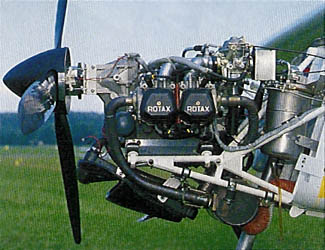

Rotax 912 (80-hp) Installation using the older style bed-mount.
  • Click here for detail photos of the Rotax 912 installation

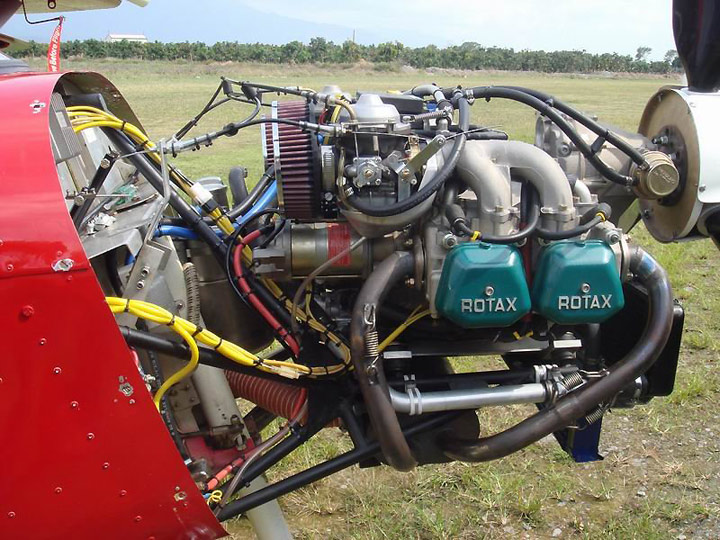

Rotax 912 Installation

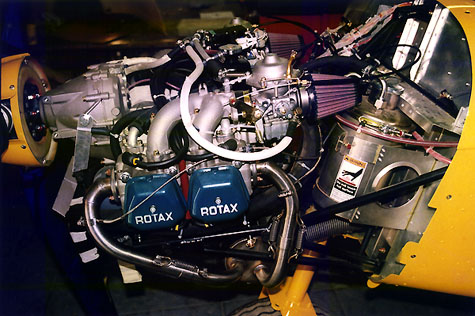

Rotax 912S  Rotax 912S (100-hp) Installation (old style installation)
 Rotax 912S (100-hp) Installation (old style installation)
Rotax 912S (100-hp) Installation (old style installation)

Rotax 912 Installation Tips & Techniques

How-To Engine DVDs from HomeBuiltHELP.com

Other hands-on building DVDs from HomeBuiltHELP.com


Alternative Engines:  Following are photos of just some of the many different alternative engines that have been installed in the STOL CH 701.  Note that alternative engines are not directly supported by Zenith Aircraft Co., and will affect the performance and specifications of the aircraft.  Click here for more info.

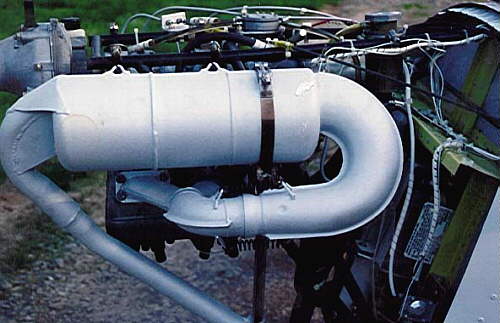

Rotax 582 Installation (65 hp, 2 cycle)

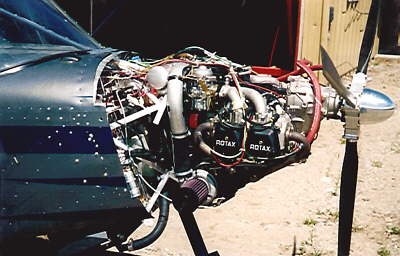

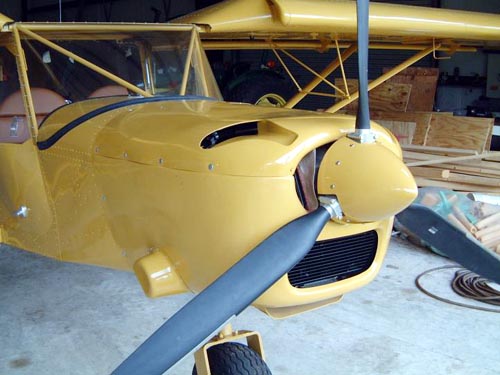

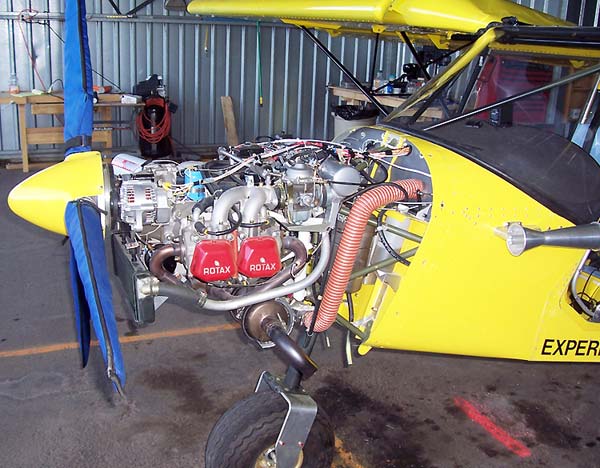

Rotax 914 Turbo STOL CH 701 with a custom-installed Rotax 914 (turbo).
STOL CH 701 with a custom-installed Rotax 914 (turbo).
Click here for details

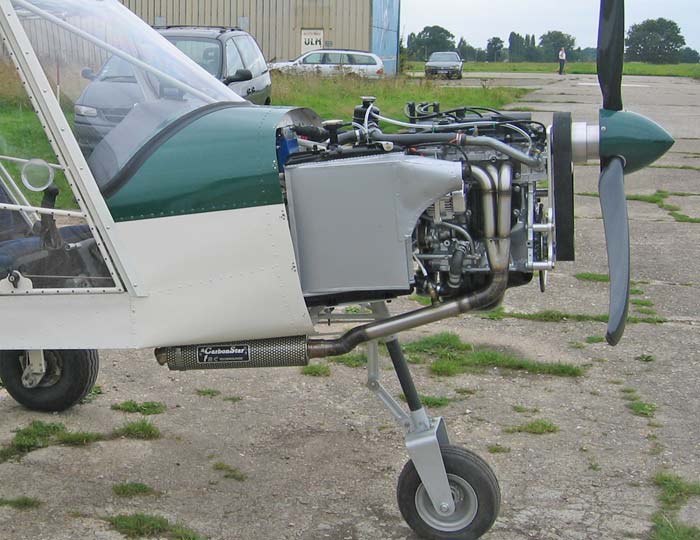

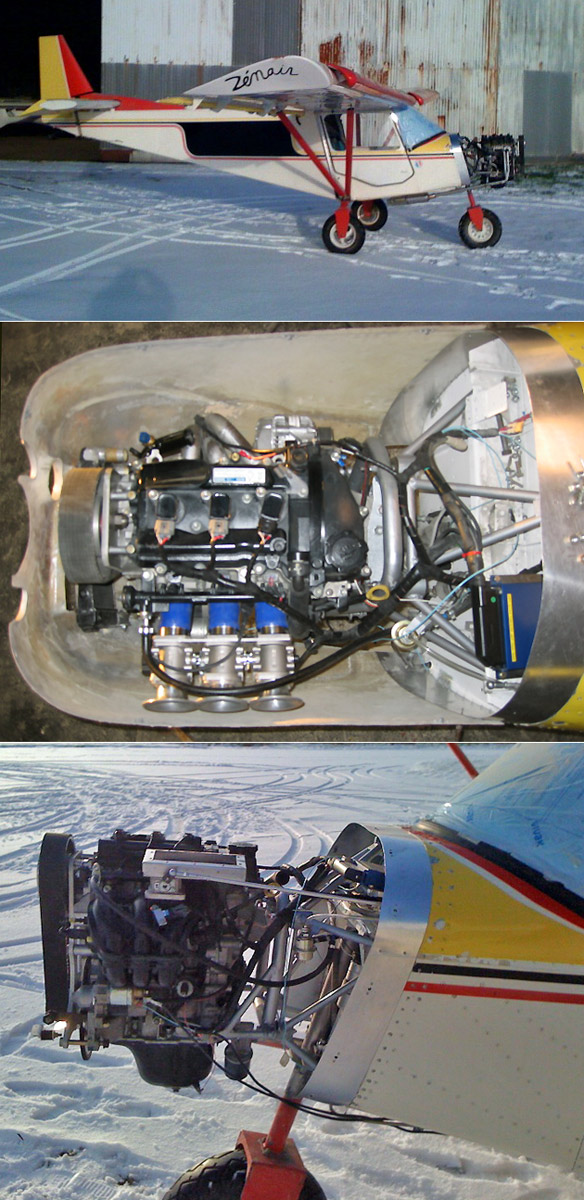

Ecoyota  Custom engine installation:  Th is a Toyota based conversion called the "Ecoyota" from France.  80 to 120-hp, three cylinder, four-stroke, liquid-cooled auto conversion.
Toyota conversion  Custom engine installation:  "Ecoyota" from France.  100-hp, three cylinder, four-stroke, liquid-cooled auto conversion.

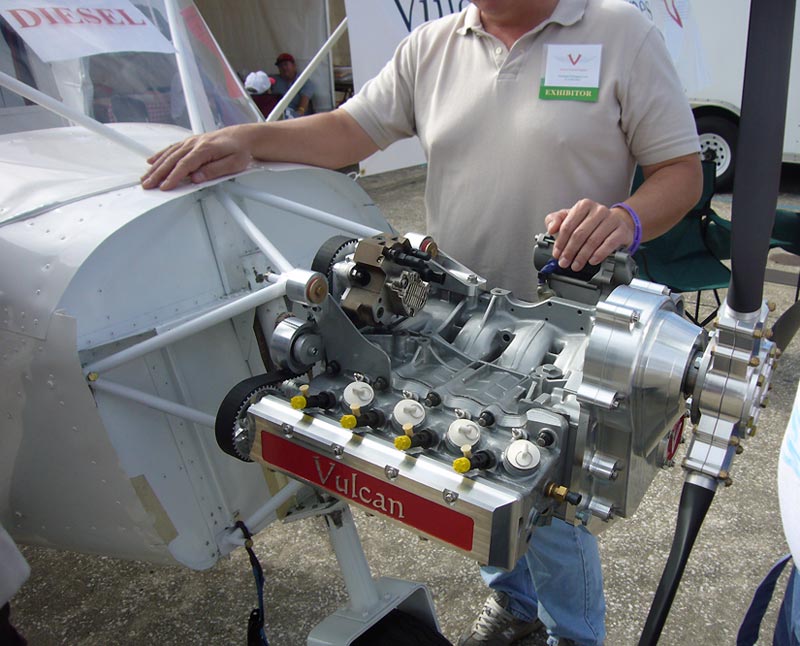

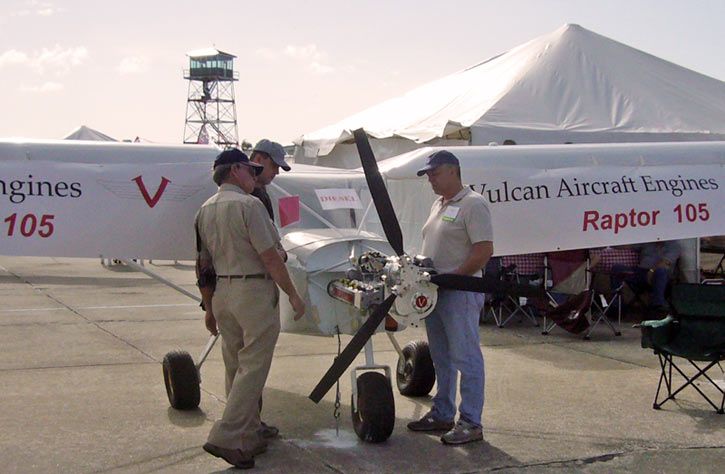

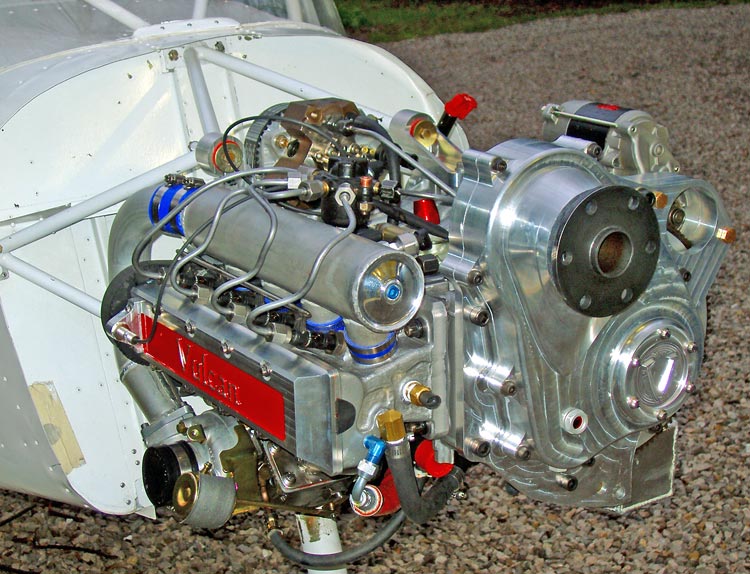

Vulcan diesel engine Raptor / Vulcan Aircraft's prototype Raptor 105 turbo diesel engine introduced at the U.S. Sport Aviation Expo (January 2007, in Sebring, Florida).  The new engine promises to be competitive to the Rotax 912S in weight and cost, and will feature FADEC control.

Raptor / Vulcan Aircraft Engines
www.RaptorTurboDiesel.com
tel: 813-394-3451



prototype diesel engine from Vulcan Aircraft
105-hp prototype diesel engine from Vulcan Aircraft

AEROPROTECH VW aircraft engine A geared VW engine from Brazil:  The AEROPROTECH VW 2.3 l. with a gear reduction unit and dual ignition system.

Click the photo for more views of this engine.

Geared VW engine from Valley Engineering A geared VW engine from Valley Engineering of Rolla, Missouri, offered for sale as a complete firewall-forward package for the STOL CH 701.
...a direct-drive VW engine on the STOL CH 701.

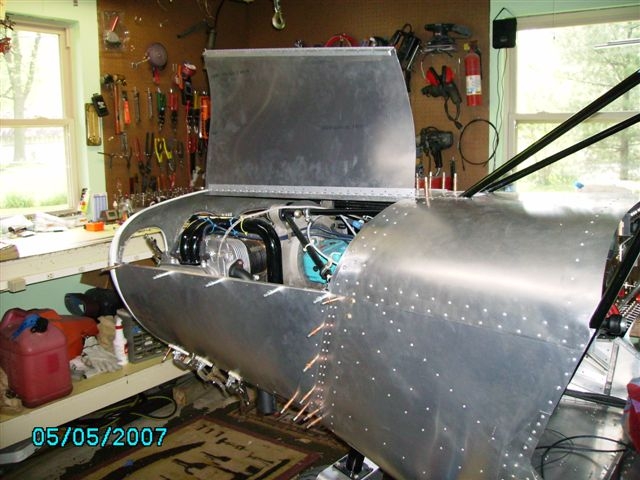

Custom engine cowl for the VW installation.

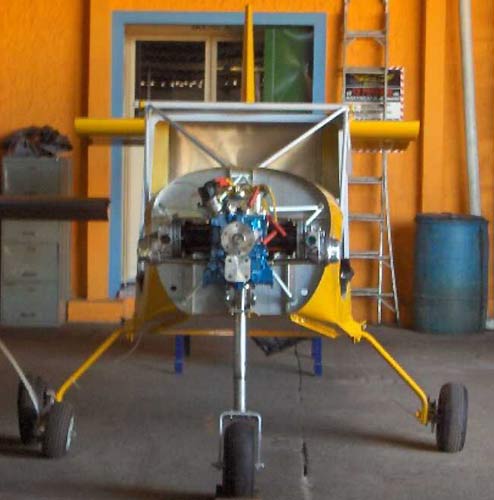

Direct drive VW engine installation Another VW engine installation on the STOL CH 701.  This installation is direct-drive (no gear reduction unit is used).

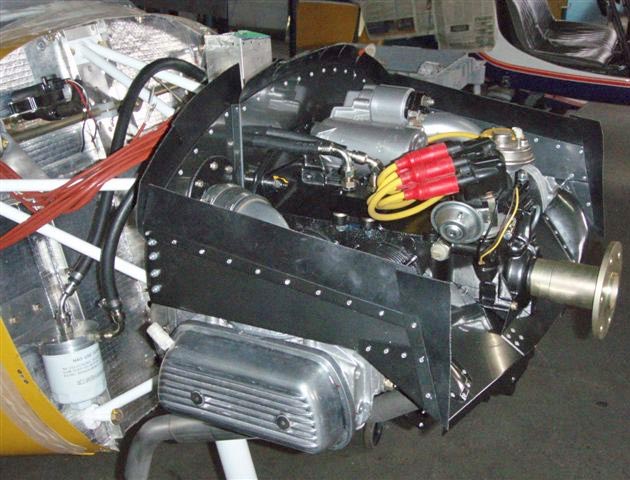

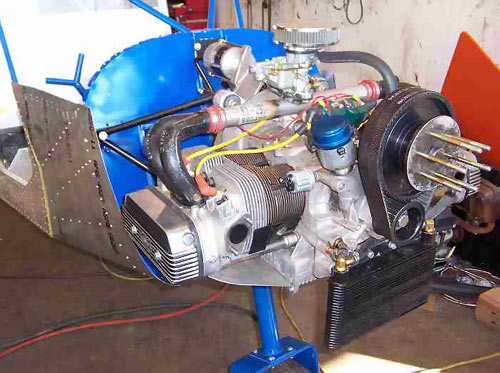

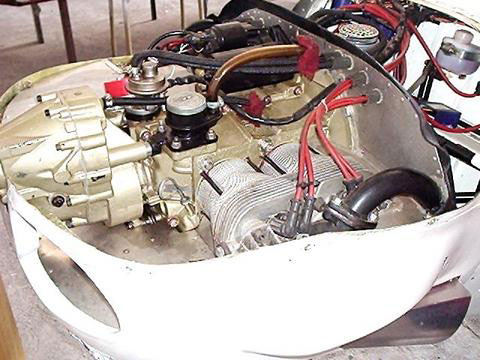

VW engine Custom geared Volkswagen (VW) engine installation on the STOL CH 701.

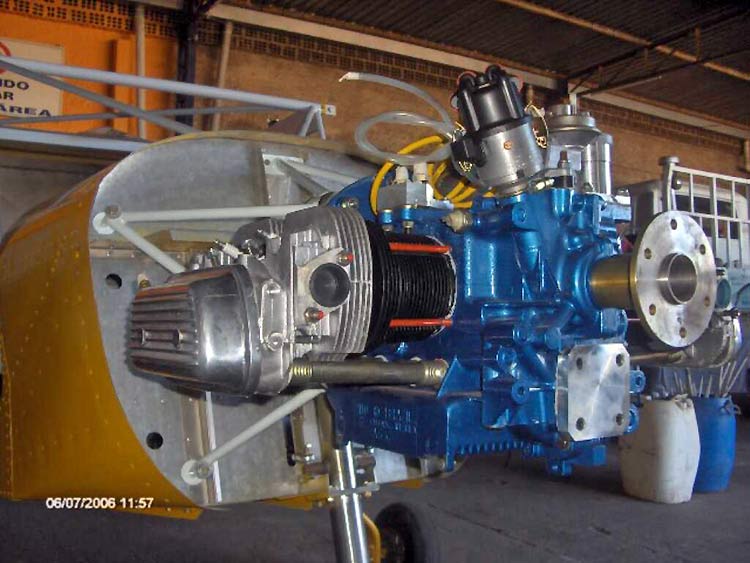

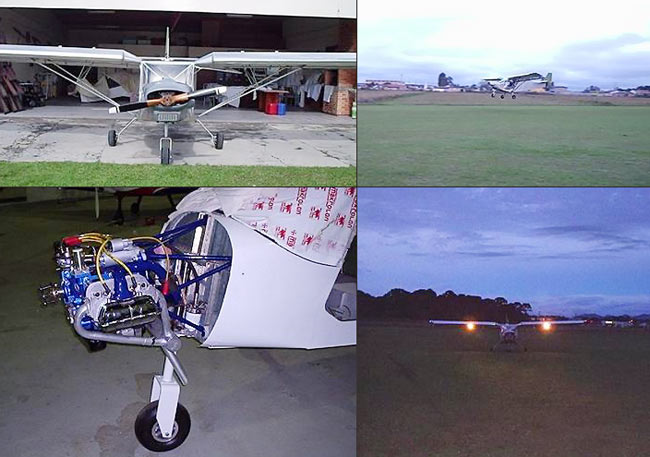

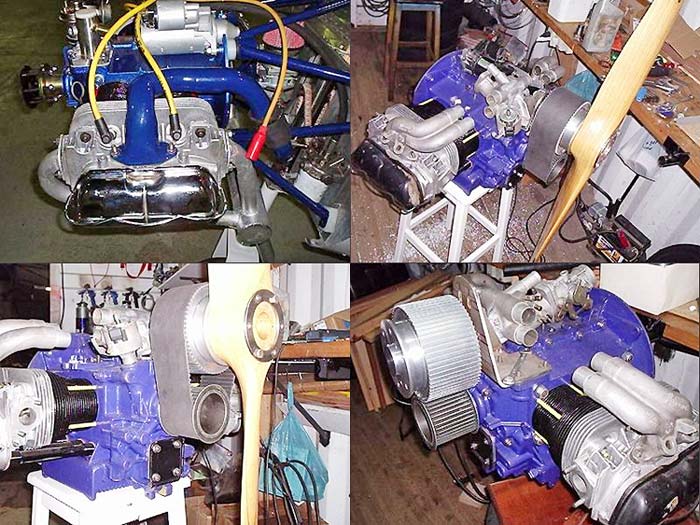

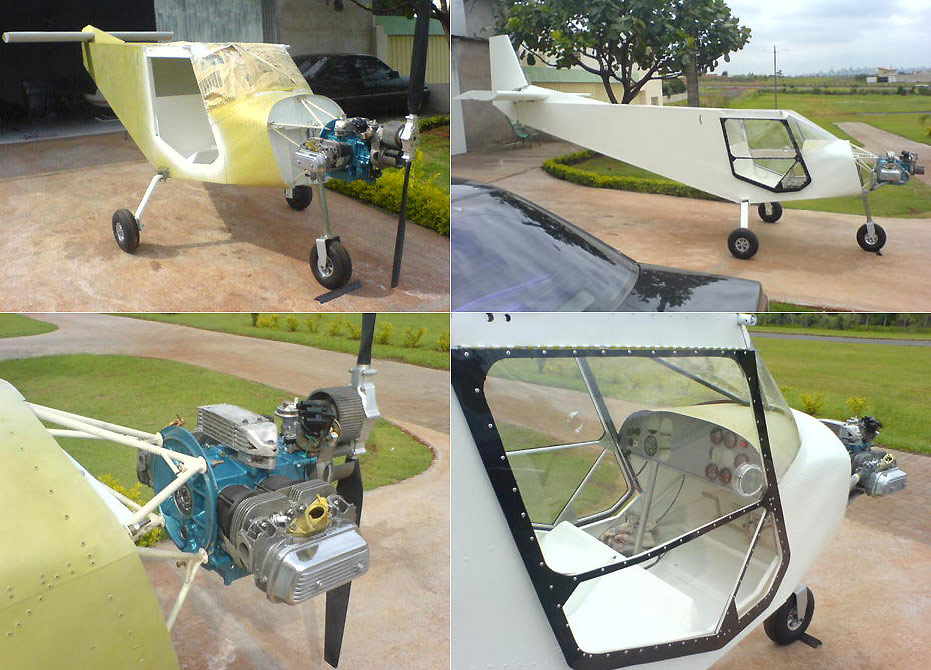

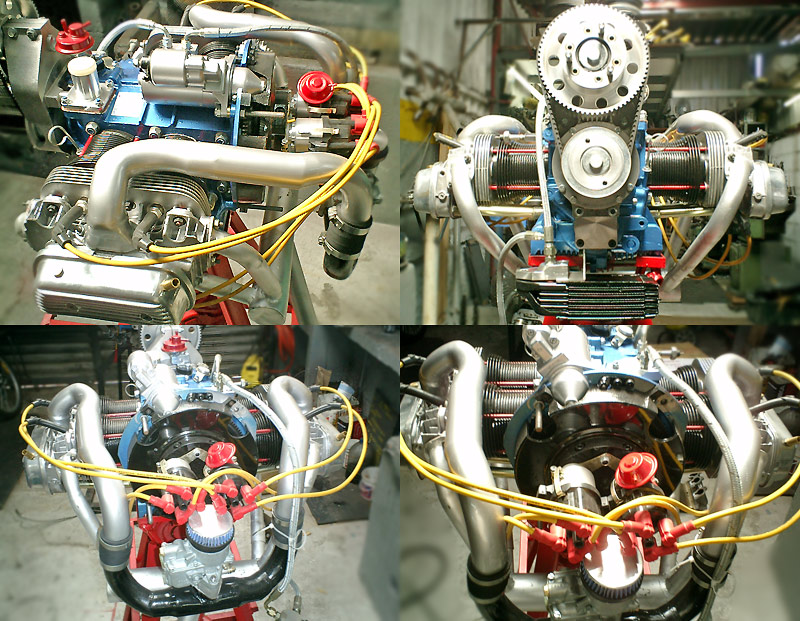

Custom geared Volkswagen (VW) engine in Brazil.
VW powerplane Custom geared Volkswagen (VW) engine in Brazil.
Gear VW Custom geared Volkswagen (VW) engine in Brazil.

Click here to view a video of the geared VW engine running

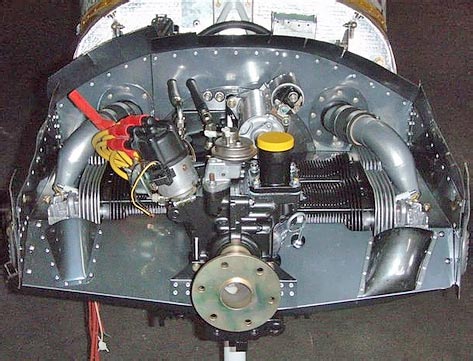

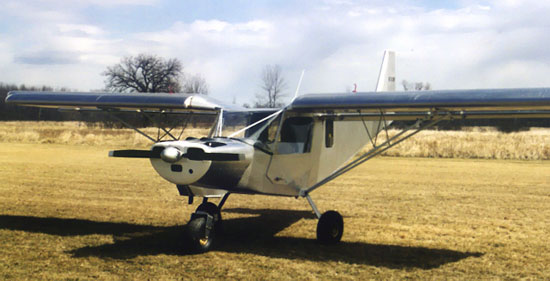

VW engine installation Custom Volkswagen (VW) engine installation on the STOL CH 701.  This VW engine installation is direct-drive.  A gear reduction unit is normally recommended for STOL performance.
VW engine installation Custom Volkswagen (VW) engine installation on the STOL CH 701.
Custom Volkswagen (VW) engine installation Custom Volkswagen (VW) engine installation on the STOL CH 701.  This VW engine installation is direct-drive.  A gear reduction unit is normally recommended for STOL performance.
Custom Volkswagen (VW) engine installation Front view: Custom Volkswagen ( VW) engine installation on the STOL CH 701.
diesel Smart engine Mercedes' Smart engine (80-hp turbo diesel) in a CH701
STOL CH 701 FWF A custom Garrett JFS 100-13A turboshaft engine installation for a STOL CH 701.

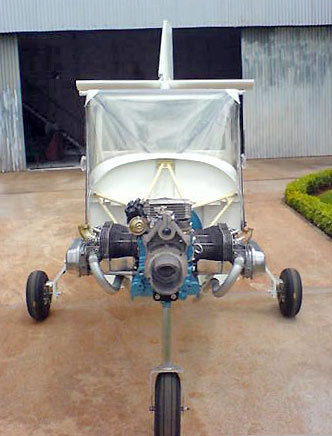

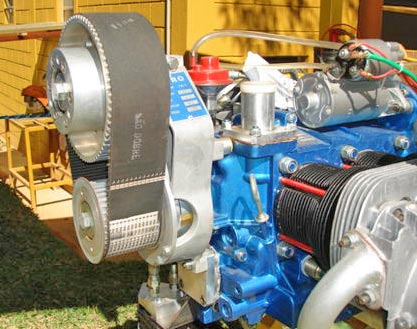

VW A geared VW engine in Brazil

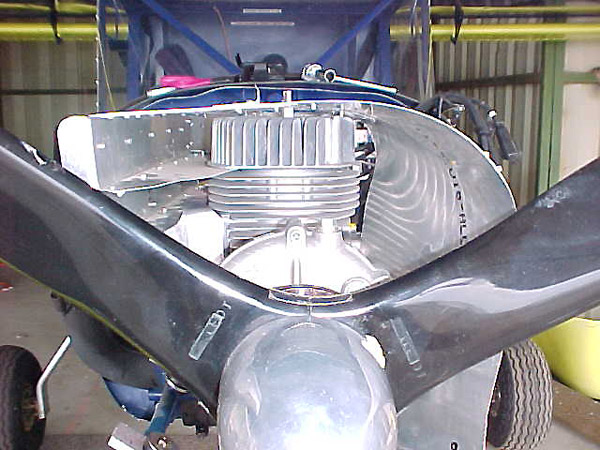

Front view of a Hirth 2703 engine installation in a STOL CH 701.

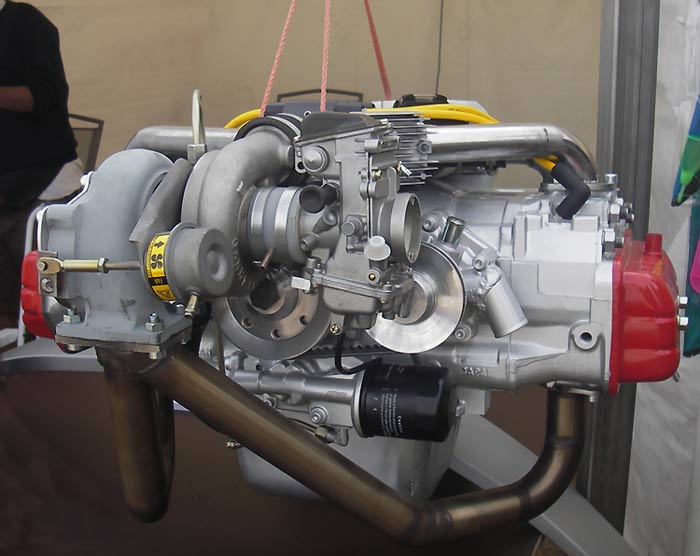

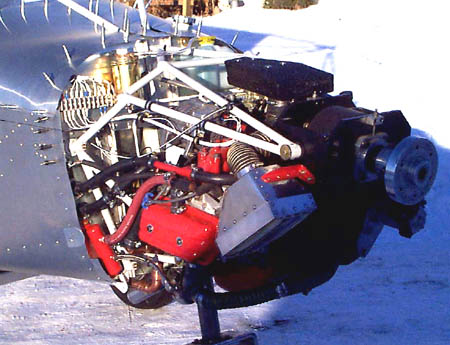

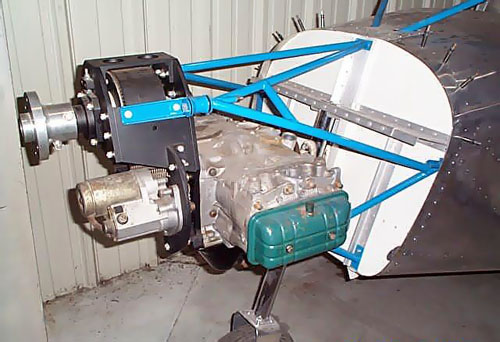

Subaru turbo EA81 conversion A custom Subaru turbo installation in the STOL CH 701.

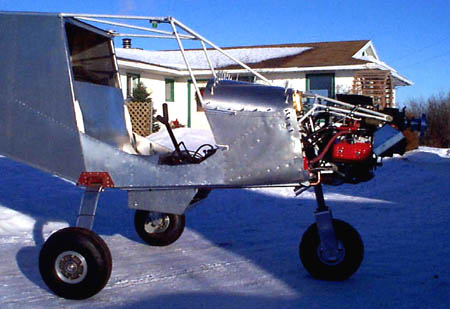

A custom Subaru installation in the STOL CH 701.
Detail view of a custom Subaru installation in the STOL CH 701.

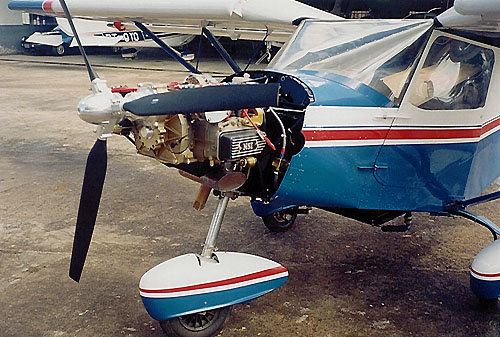

7-nsi2.jpg (72413 bytes) A customer's NSI Subaru EA-81 automotive engine conversion.

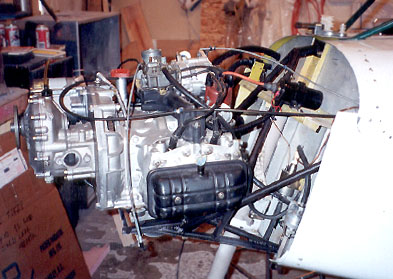

subaru-ea-81.jpg (50296 bytes) A custom Subaru installation in the STOL CH 701.

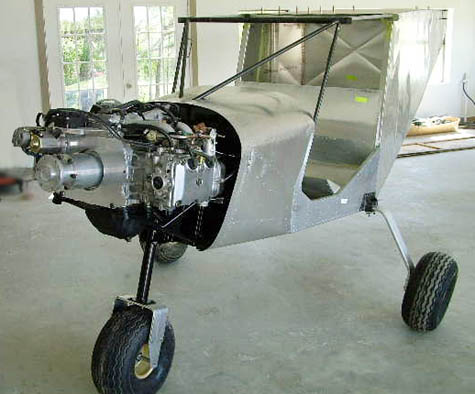

l-martin-subaru.jpg (42000 bytes) A custom 2.5 Subaru installation in the STOL CH 701.

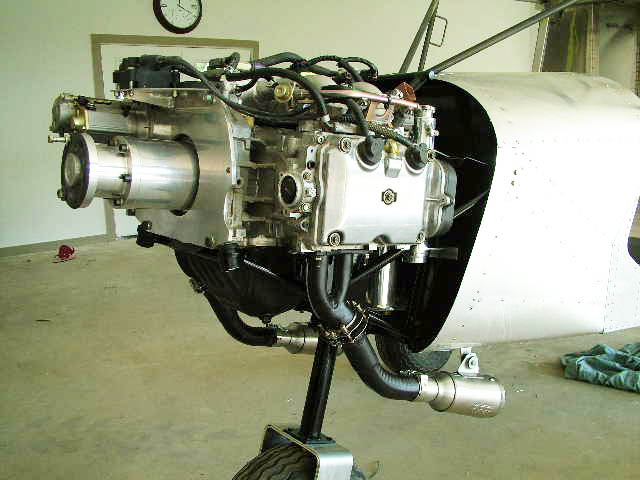

subaru701-lmartin.jpg (50491 bytes) A custom 2.5 Subaru installation in the STOL CH 701.

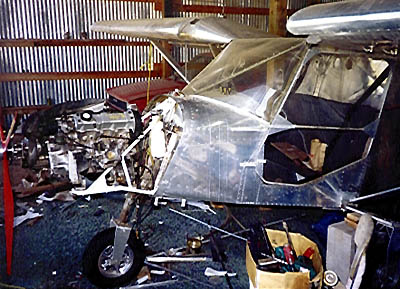

Suzuki automotive conversion Suzuki automotive conversion (more on page 2)

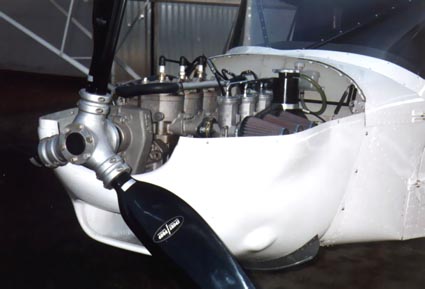

A 2SI engine (model 690 - a two-stroke,
three cylinder, 73 HP engine).

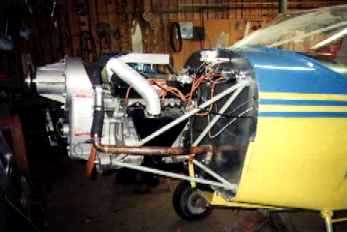

A CAM100 installation.

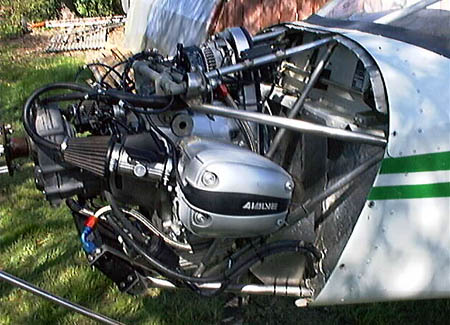

A custom BMW engine installation.

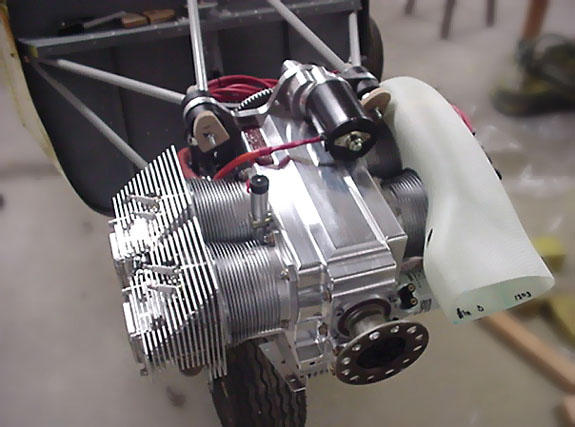

A Jabiru 2200 custom engine installation.

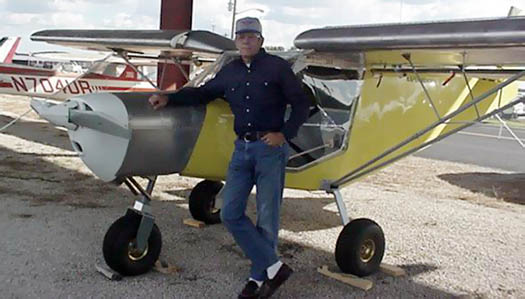

701cfd.jpg (41533 bytes) Jabiru 2200 installation on the STOL CH 701

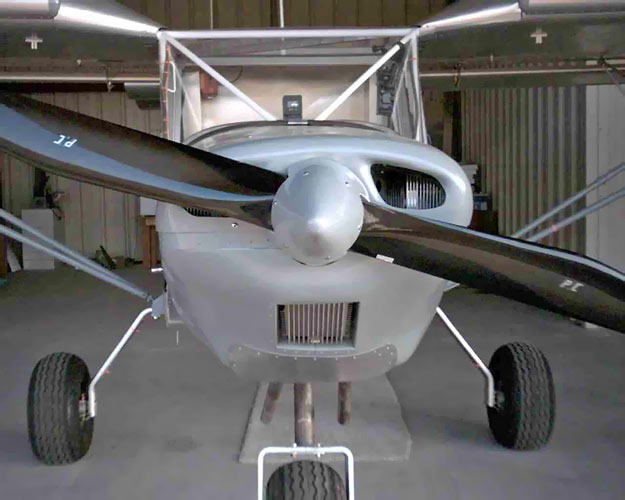

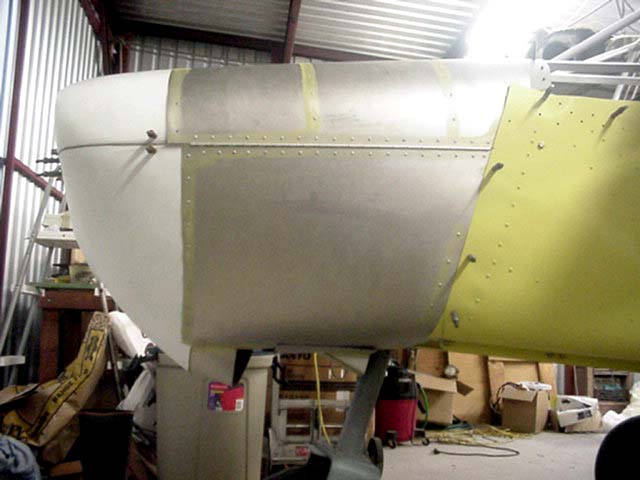

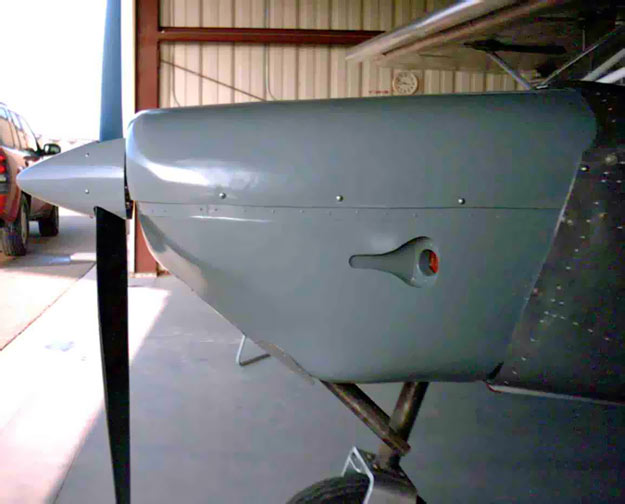

Jabiru 2200 cowl installation Jabiru 2200 cowl installation
Jabiru 2200 cowl installation Jabiru 2200 cowl installation

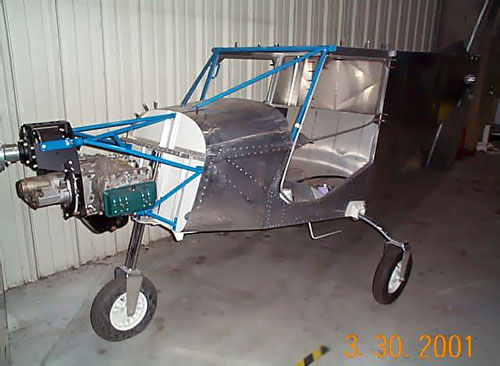

Custom Subaru EA-81 engine installation
Detail view of the custom EA-81 installation

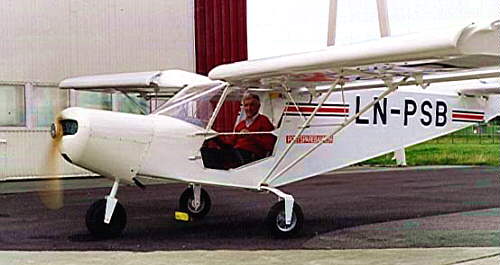

A custom Continental engine installation with a 72-inch Warp Drive propeller.
A Continental O-200 engine installation in a STOL CH 701.
7tdm.jpg (70283 bytes) A Continental C-90 installation on a STOL CH 701 (taildragger).

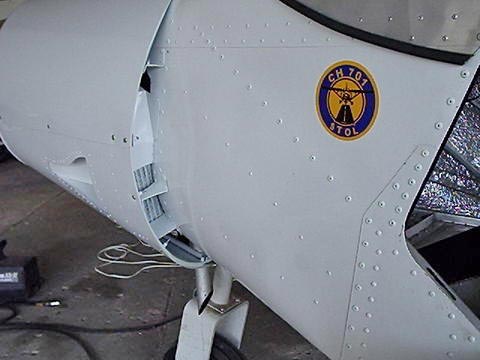

Custom engine cowl using a fiberglass nose bowl.
Continental C-65 engine installation A custom Continental C-65 engine installation in Brazil

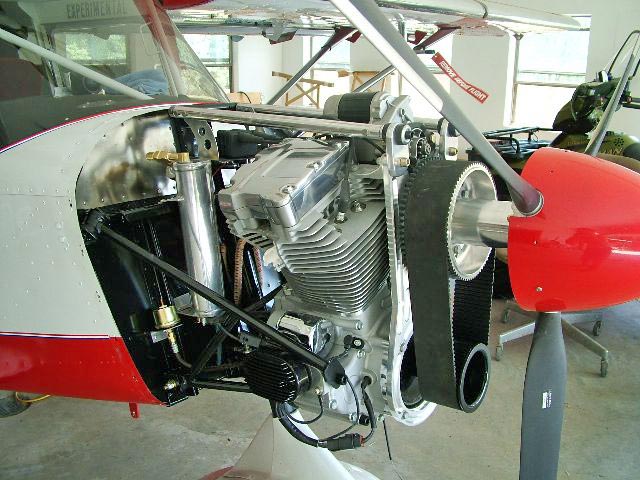

HOG Here's a first:
A custom Harley-Davidson engine installation

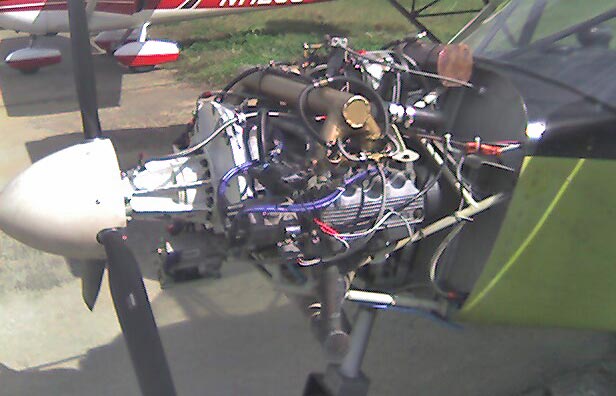

EJ22 Custom EJ22 Subaru engine installation on a STOL CH 701 (operated without a cowl).

  • Click here for more engine installation photos (page 2).

Note that alternative engines are not directly supported by Zenith Aircraft Co., and will affect the performance and specifications of the aircraft.  Click here for more info.

Most these images show customer-built aircraft which have been modified without the designer's specific approval. Modifications affect the specifications and performance of the aircraft.
