Images of the STOL CH 801 Prototype
Photos from EAA Oshkosh Airventure - August 1998
Click on images for full-size view...

osh98-3.jpg (34181 bytes) The STOL CH 801 prototype aircraft was introduced to the public at EAA Oshkosh on July 29, 1998.

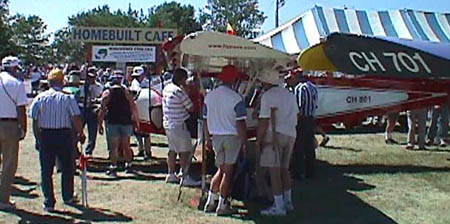

osh98-5.jpg (37246 bytes) The STOL CH 801 prototype aircraft at EAA Oshkosh.
osh98-6.jpg (30756 bytes) The STOL CH 801 prototype and STOL CH 701 aircraft at EAA Oshkosh.

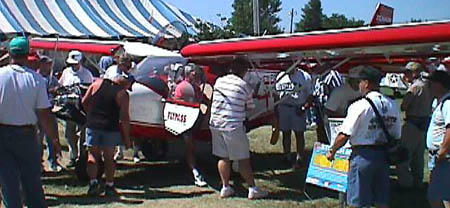

osh98-4.jpg (36593 bytes) The STOL CH 801 prototype aircraft at EAA Oshkosh.

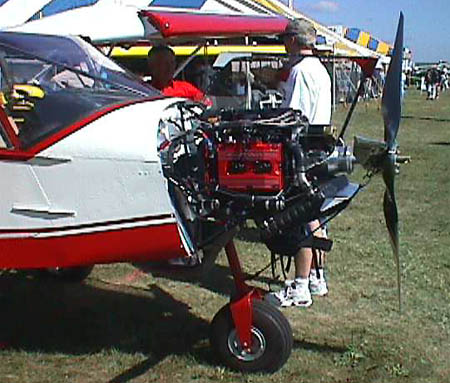

Cross Flow Aero CF4-20 Subaru Installation (180-hp)
osh98-2.jpg (33292 bytes) The Zenith Aircraft pavilion at the EAA Oshkosh AirVenture.
osh98-6.jpg (32910 bytes) Zenith Aircraft also introduced the new Super ZODIAC CH 601 XL at EAA Oshkosh.
July 10, 1998 - The STOL CH 801 Prototype #2 is nearing final completion and being prepared for first flight.
798-m.jpg (47408 bytes) The STOL CH 801's rear seat is designed to accomodate two adults comfortably.
798-f.jpg (48586 bytes) STOL CH 801 prototype #2 gets prepared for first flight.

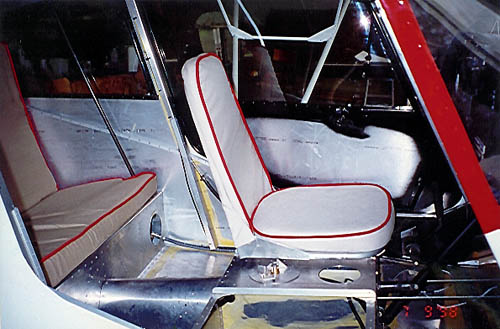

798-i.jpg (49376 bytes) STOL CH 801 cabin - right seat removed for positioning a stretcher.

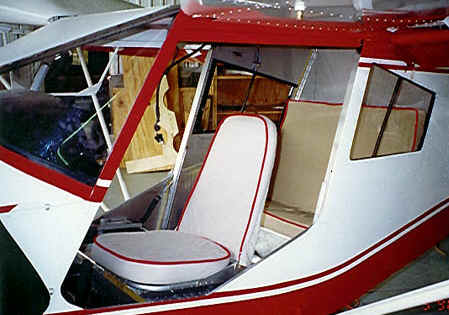

798-h.jpg (47327 bytes) STOL CH 801 cabin - left seat folds forward to provide easy access to rear.
STOL CH 801 prototype #2

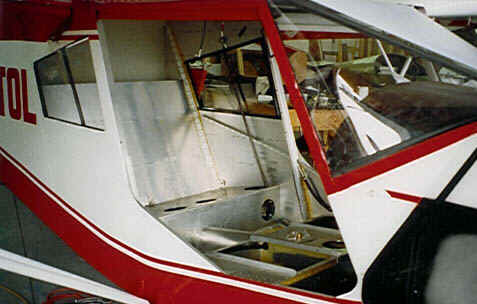

With the rear seats removed, there is a large rear cargo compartment.
The large swing-forward doors provide easy access to the cabin.

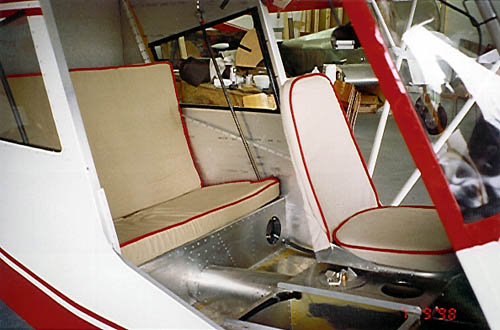

798-l.jpg (43499 bytes) The large swing-forward doors provide easy access to the cabin.
The STOL CH 801 prototype is equipped with a 180-hp Subaru automotive conversion.

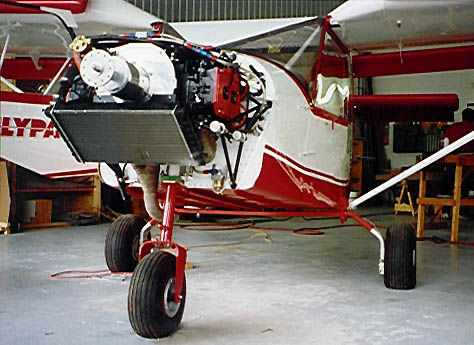

798-j.jpg (50753 bytes) The STOL CH 801 prototype is equipped with a 180-hp Subaru automotive conversion.

   ...more photos coming soon...

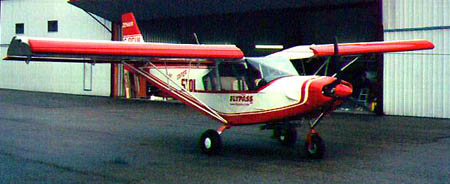

Prototype Images - April 1998 - Prototype #1
Click on images for full-size view...

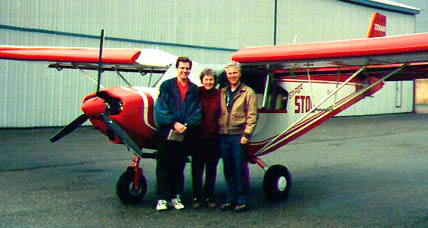

8p-6.jpg (28041 bytes) Builder / pilot Art Mitchell and the STOL CH 801 prototype.
April 1998

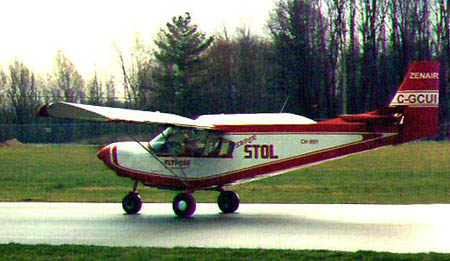

Side view
April 1998


More Photos: Prototype Photos 1
Prototype Photos 2
Prototype Photos 3
Prototype Photos 4
