STOL CH 801 Sport Utility Kit Aircraft
Detail Views

Detail views of Zenith Aircraft's factory demo STOL CH 801, equipped with the Lycoming O-360 (180-hp) engine.
Click on images for full-size view...

Lycoming O-360 (180-hp) engine.

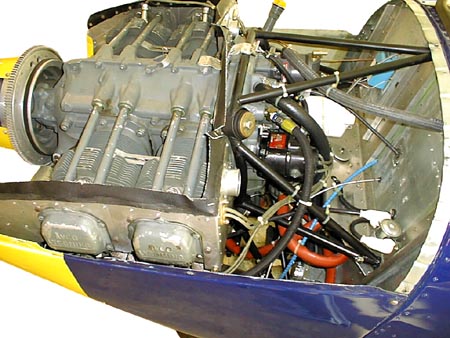

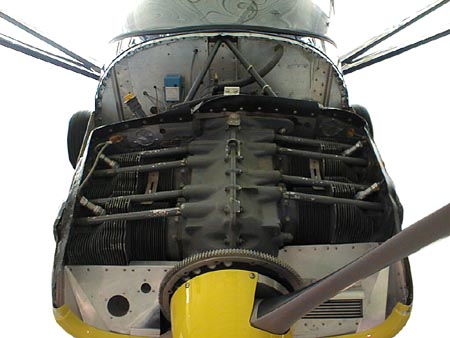

Lycoming O-360 (180-hp) engine installation.
Left-side rudder pedals with hydraulic toe-brakes.
The forward cabin floor.

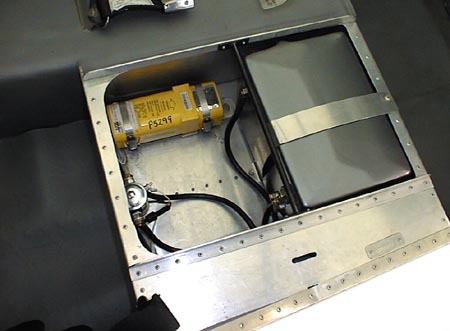

Battery and ELT located under the right seat for quick and easy access.

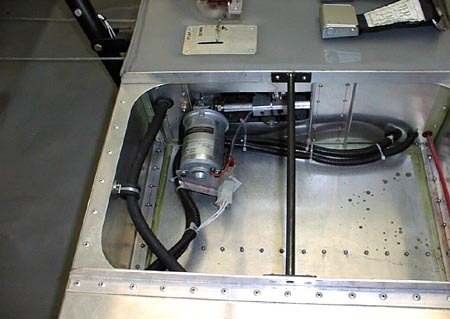

Electric flap actuator located under the left seat.
Under the left seat - view from right seat...
The seat adjustment / retaining pin makes adjusting the seats quick and easy.

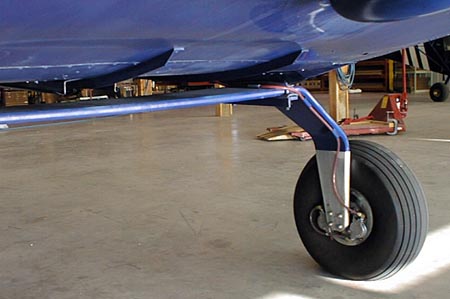

The main gear spring.

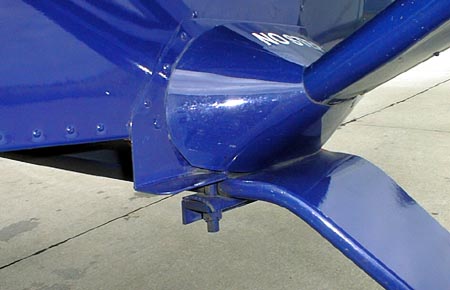

Main gear / strut fitting.
Floats installation.
View of fixed leading-edge wing slats.

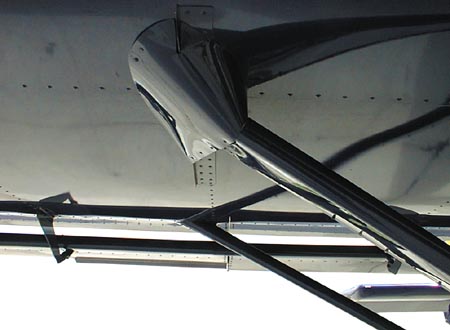

View of the wing struts and flaperons.

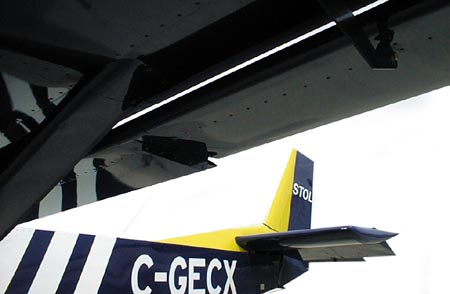

View of flaperons and tail sections.
Flaperon attachment to push-pull rod.
Wing STOL CH 801 wing

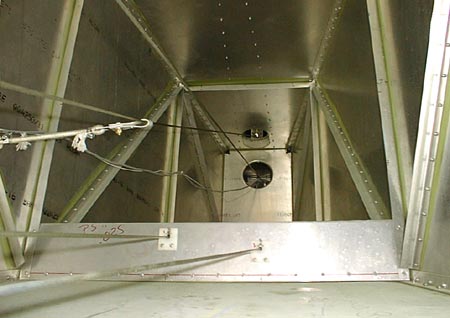

A view inside the rear fuselage (photo taken from large access panel on bottom of fuselage).

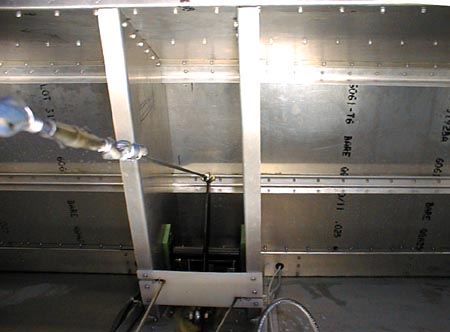

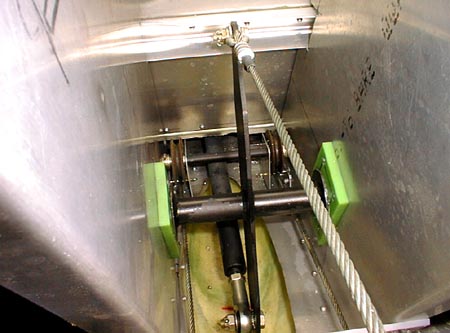

View of control system (under the back seat in the rear fuselage).
View of control system (back of the rear seats in the fuselage).
View from bottom of rudder attachment / control bearing.

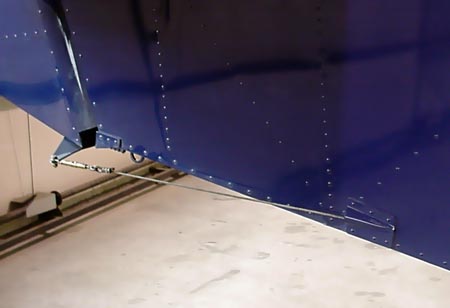

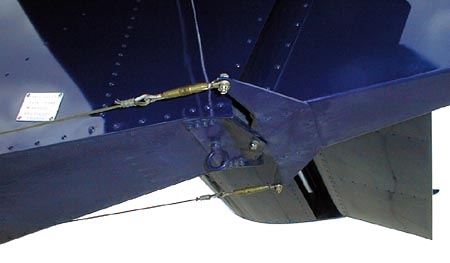

Elevator cable attachments.

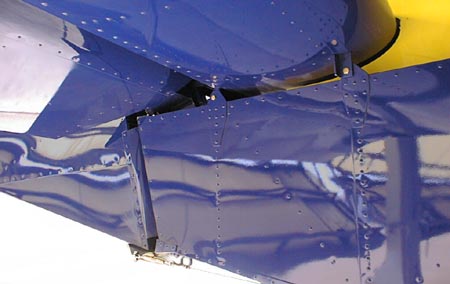

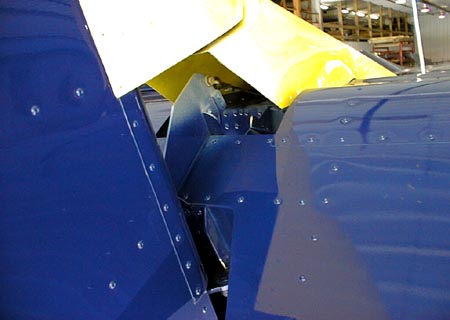

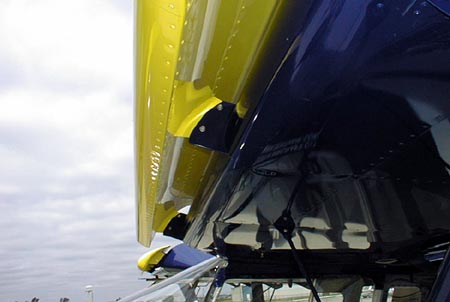

The rudder and horizontal tail join the rear fuselage.
Some additional requested views...
