Images of the STOL CH 801 Prototype

Photos of the Lycoming O-360 (180-hp) Engine Installation
Click on images for full-size view...

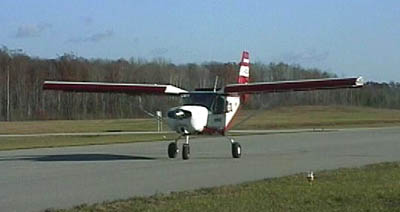

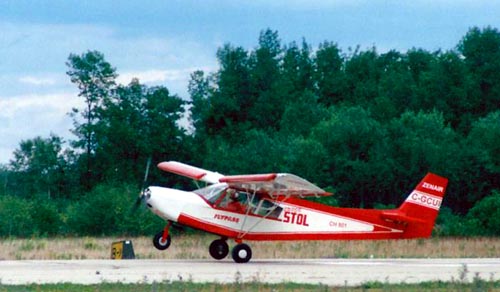

STOL CH 801 - 11/98 The STOL CH 801 with the Lycoming O-360 (180-hp) engine and raised landing gear.

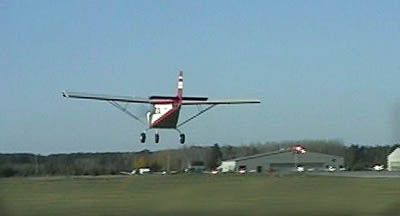

STOL CH 801 - 11/98 Designer Chris Heintz flying the STOL CH 801 with the Lycoming O-360 (180-hp) engine.

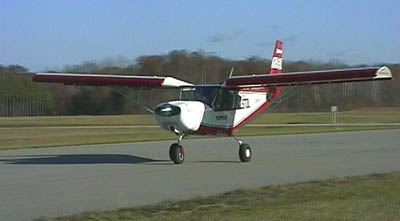

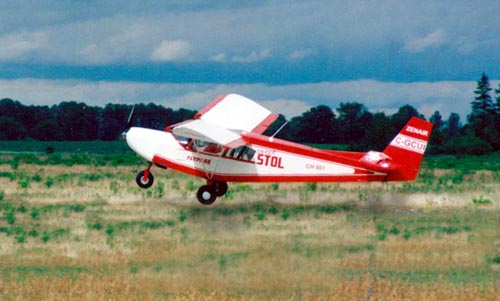

STOL CH 801 The STOL CH 801 with the Lycoming O-360 (180-hp) engine and raised landing gear.

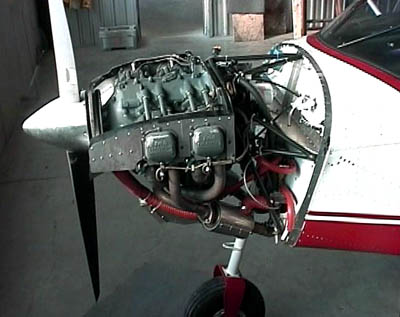

STOL CH 801 - 10/98 The Lycoming O-360 (180-hp) engine in the STOL CH 801 prototype.

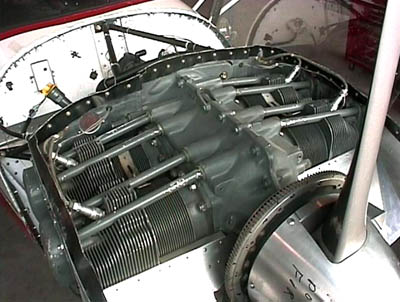

STOL CH 801 - 10/98 The Lycoming O-360 (180-hp) engine.

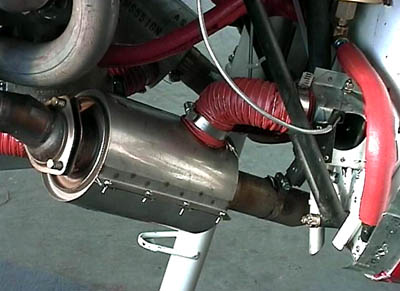

STOL CH 801 - 10/98 Carburetor heat manifold.

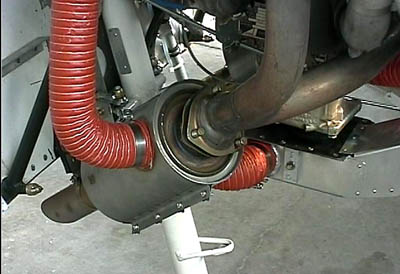

STOL CH 801 - 10/98 Cabin heater.

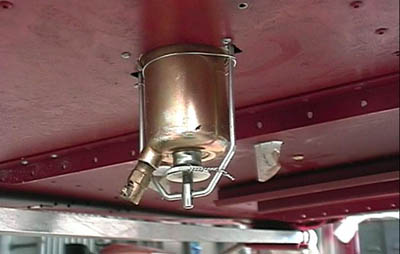

STOL CH 801 - 10/98 Gascollator fuel drain.

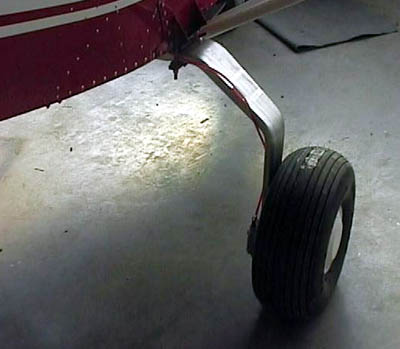

STOL CH 801 - 10/98 Raised main landing gear for additional ground clearance (and to allow the belly pod baggage compartment size to be maximized).

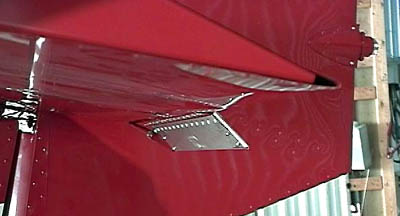

STOL CH 801 - 10/98 Electric elevator trim tab.

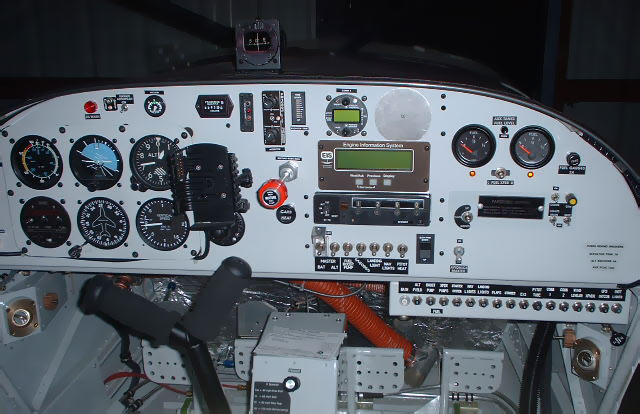

Custom Instrument Panel Custom instrument panel
Landing Light - Custom installation Custom landing light installation on the nose gear strut
Click on images for full-size view...


More Photos: Prototype Photos 1
Prototype Photos 2
Prototype Photos 3
Prototype Photos 4
