Images of the STOL CH 801 Prototype
- 1998


Prototype Images - April 1998
Click on images for full-size view...

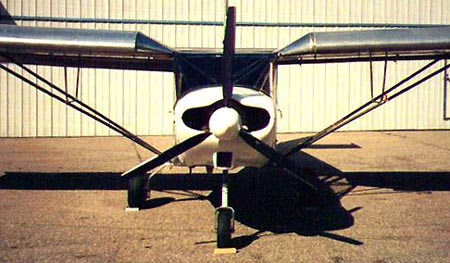

Fiberglass cowl - prototype

April 1998

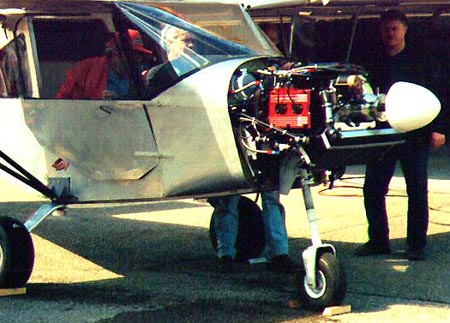

Cross Flow Aero CF4-20 Subaru Installation (180-hp)

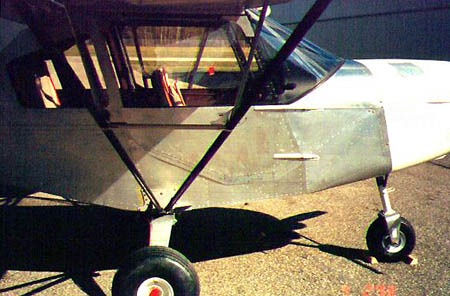

Large access doors on each side

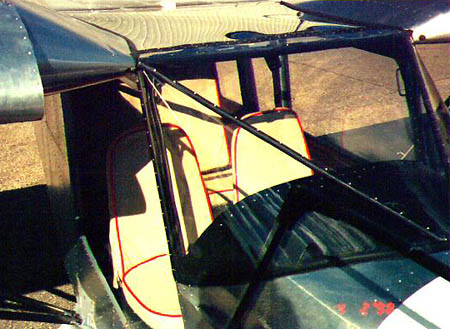

Huge cabin area for 4 occupants or plenty of cargo.

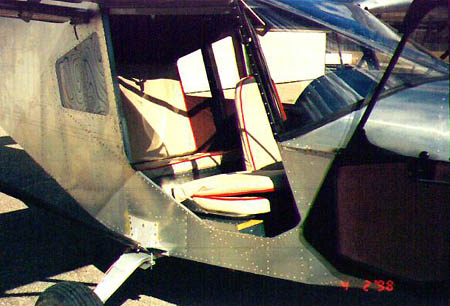

Opened door - easy access to rear seats
Huge cabin area for 4 occupants or plenty of cargo.

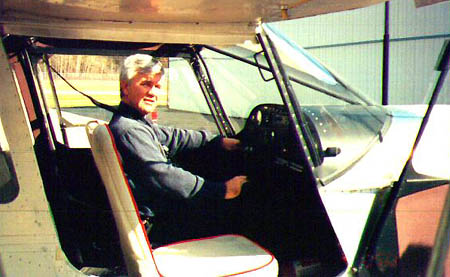

Opened door - easy access to cabin
Large instrument panel accommodates full avionics packages.


More Photos: Prototype Photos 1
Prototype Photos 2
Prototype Photos 3
Prototype Photos 4


Prototype - 2/98
Click on images for full-size view...

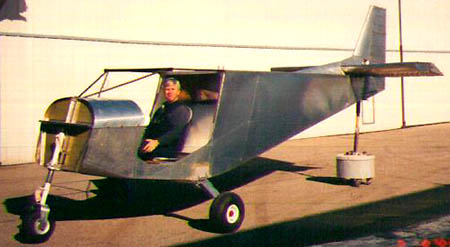

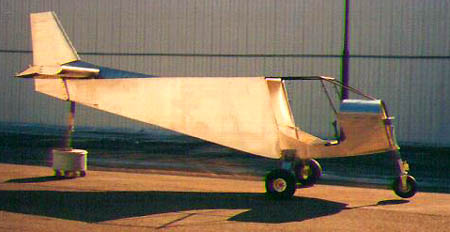

Fuselage assembly of the prototype STOL CH 801 (less engine and rear window).

STOL CH 801 cabin area (less doors and rear window).
