The STOL CH 801 Quick-Build Kit provides maximum pre-assembly of kit parts to save the builder valuable time and to simplify assembly.

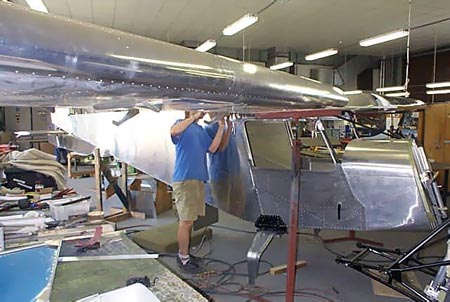

Nearly all major components have been pre-aligned with rivet holes
pre-drilled: Once clecoed together in jigs, most sections are then

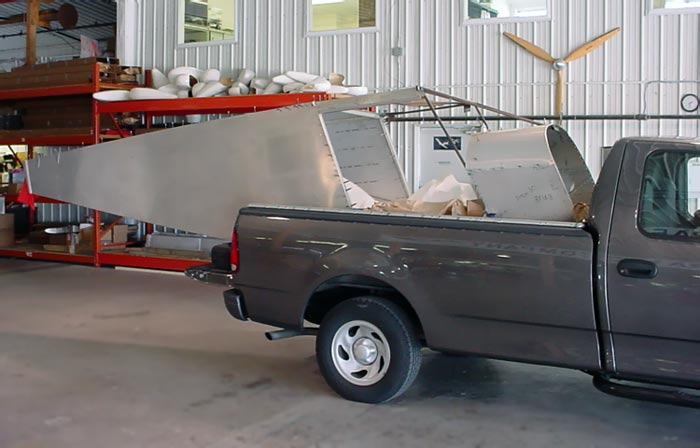

taken apart again for easy shipping and final re-assembly by the
builder. The fuselage and tail sections are riveted together, and
the wings are taken
apart again for easy shipping and final re-assembly by the builder.
The STOL CH 801 kit, whether the
standard kit or quick-build kit, is made up of the same quality parts. The difference
between a standard and quick-build kit is the level of assembly of the
various kit components. Assembly time with a Quick-Build Kit is
projected to be 50%
less than with the standard kit!
The STOL CH 801 Quick-Build Kit provides maximum pre-assembly of the standard kit parts to save the builder valuable time and to simplify assembly.

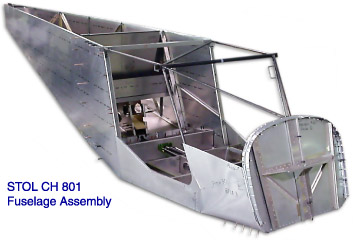

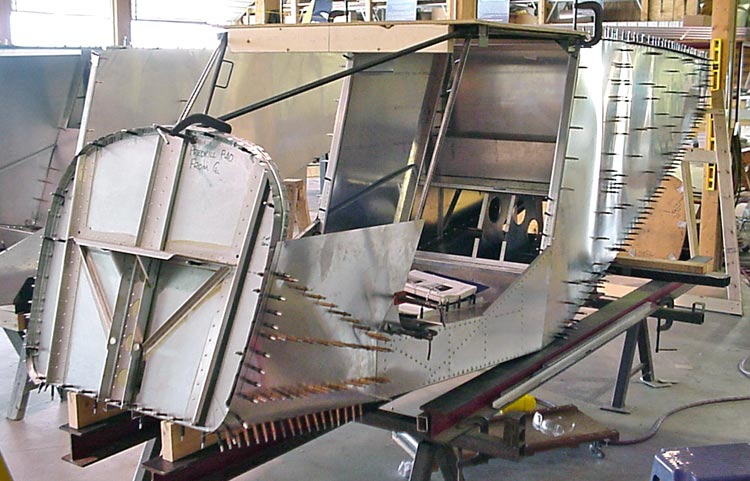

The complete airframe has been pre-jigged with nearly all parts pre-aligned and all holes pre-drilled. The fuselage and horizontal tail sections are riveted together and the wings are pre-assembled.
While the standard kit is
developed to provide all the kit parts and components needed to complete
the aircraft at the lowest cost possible, the fast build kit provides maximum pre-assembly of the kit
parts allowed under the "51% rule," to save the builder valuable

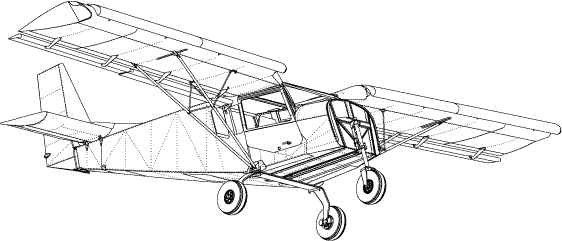

CH 801 QUICK-BUILD KIT
|The Quick-Build Kit is supplied "firewall-back" to allow for easy installation of your
choice of engine, including the
standard Lycoming O-360 powerplant.
The Quick-Build Kit includes all airframe parts, including landing gear, standard fuel system,
controls, and all hardware required to finish the airframe assembly. Standard features of the airframe kit include electric elevator trim tab, wheels with hydraulic disk brakes, and more. Not included in the airframe kit: powerplant, instruments
package, upholstery and paint.
CH 801 QUICK-BUILD KIT:
Zenith kits are eligible for licensing in the
Amateur Built Experimental category. This means that at least 51% of the
work remains for the kit builder to perform, whether building from the
standard kit or the quick-build kit.
Aviation Administration (FAA) will have determined that the quick
build kit, as evaluated, will meet the intent of 14
Code of Federal Regulations (CFR) Part 21, Section 21.191(g). Note
that the FAA evaluation should not be construed as meaning the kit is FAA
certified, certificated or approved, but is eligible for airworthiness
certification by amateur builders.
Prices are in US funds,
subject to change without prior notice. F.O.B. Factory or other specified
Equipment, availability and level of pre-assembly subject to change
without prior notice.
Compare the value and quality of the STOL CH
801 kit to the competition for completeness, pre-manufactured parts and components,
standard equipment, low build time, building ease and required skills and tools!
START BUILDING FOR JUST A FEW
HUNDRED DOLLARS !
An exclusive offer for first-time builders
If youre ready to start building your
own airplane, but arent sure that you have the required skills and want to learn
more about building, the introductory Starter Kit has been developed just for you. The
Starter Kit includes the complete kit for the rudder tail section of the STOL CH 801 and
comes with a detailed and illustrated 'step-by-step' assembly manual - everything you need
to get started!
Developed specifically for the first-time builder, the low-cost Starter Kit includes
everything you need to start building your own STOL CH 801 kit aircraft. Click here for
information on the introductory Starter Kit and factory workshops.
