The Walter-LOM engine is manufactured in the Czech Republic and has developed an excellent reputation as a low-cost and reliable aircraft engine.  Represented in North America by Moravia Ltd., service and spare parts are readily available.
Moravia is working together with aircraft manufacturers to establish Walter-LOM as a standard engine option for the builder/pilot.  Modern features found on the proven engine, as well as the value of the complete engine firewall-forward package, will make the Walter-LOM engine popular with many builders.

Click following images for full-size views:

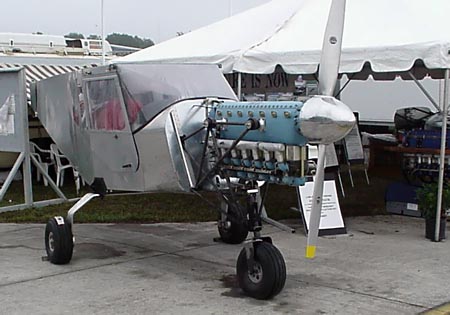

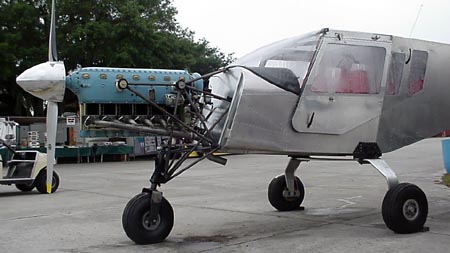

Walter LOM 210-hp engine installation in the STOL CH 801 (4/00)

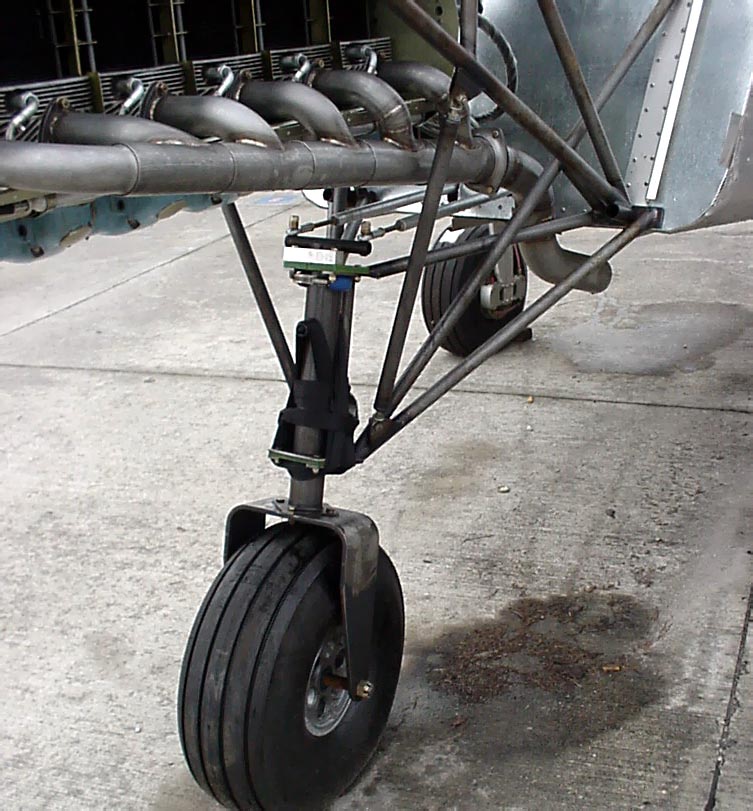

A custom engine mount has been developed - the mount incorporates the nosewheel assembly, which has been moved forward to accommodate the increased length of the Walter LOM engine.
  • Click here for more photos of the engine and cowl.

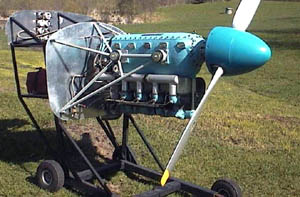

Walter-LOM M337A
210 HP, 6 cylinder

M337A Engine Specifications:

Horsepower, Max 210   Propeller Drive direct
No. of cylinders 6 Take-off (HP/RPM) 210/2750
Dry Weight (Lbs.) 337 Cruise (HP/RPM) 170/2600
Bore (Inches) 4.13 Consumption @ 2400 RPM (US Gal./Hour) 10.6
Stroke (Inches) 4.53 Recommended Fuel (Octane) 78 - 100 LL
Displacement 364.3 cc. Crankshaft Rotation c'clockwise
Compression Ratio 6.3:1 TBO (HRS) 2000

Walter-LOM M337B
235 HP, 6 cylinder

M337B Engine Specifications:

Horsepower, Max 235   Propeller Drive direct
No. of cylinders 6 Take-off (HP/RPM) 235/3000
Dry Weight (Lbs.) 339 Cruise (HP/RPM) 170/2600
Bore (Inches) 4.13 Consumption @ 2400 RPM (US Gal./Hour) 10.6
Stroke (Inches) 4.53 Recommended Fuel (Octane) 78 - 100 LL
Displacement 364.3 cc. Crankshaft Rotation c'clockwise
Compression Ratio 6.3:1 TBO (HRS) 2000

M337 Engine Features:

  • SUPERCHARGED
  • SMALL FRONTAL AREA
  • INLINE - INVERTED
  • FOUR STROKE
  • DIRECT DRIVE
  • AIR COOLED
  • OVERHEAD CAMSHAFT
  • HEMISPHERICAL COMBUSTION SPACE
  • LOW SPECIFIC FUEL CONSUMPTION
  • ALT. COMPENSATED FUEL INJECTION
  • 2,000 HOURS TBO

Walter-LOM M332B
160 HP, 4 cylinder
Walter-LOM M332B

M332B Engine Specifications:

M332B Engine Features:

  • SMALL FRONTAL AREA
  • INLINE - INVERTED
  • FOUR STROKE
  • DIRECT DRIVE
  • AIR COOLED
  • OVERHEAD CAMSHAFT
  • HEMISPHERICAL COMBUSTION SPACE
  • LOW SPECIFIC FUEL CONSUMPTION
  • ALT. COMPENSATED FUEL INJECTION
  • 2,000 HOURS TBO
Horsepower, Max 160   Propeller Drive direct
No. of cylinders 4 Take-off (HP/RPM) 160/3000
Power to weight ratio 1.6 lb/HP Cruise (HP/RPM) 120/2400
Frontal area 2.1 sq.ft. Consumption @ 2400 RPM (US Gal./Hour) 7.6
Bore (Inches) 4.13 Recommended Fuel (Octane) 78 - 100 LL
Stroke (Inches) 4.53 Crankshaft Rotation c'clockwise
Displacement 242.8 cc. TBO (HRS) 2000
Compression Ratio 6.3:1 Dry Weight (Lbs.) 250

Other engine types, ranging from 150 to 225 hp, are suitable for installation in the STOL CH 801, including the proven 180-hp Lycoming O-360 engine, which is the standard powerplant for the STOL CH 801.

For more information on Walter-LOM engine represented by Moravia, see http://www.moraviation.com  Email: moravia@flash.lakeheadu.ca

  • Click here for photos of a Walter-LOM equipped STOL CH 801.
  • Click here for a flight report.
  • Click here for even more photos of the Walter-LOM engine and cowl.

The engine information presented above has been provided by Moravia Ltd.  The above resources are provided for informational purposes only. Alternative engines affect performance, specifications and flight characteristics of the aircraft. Also, the weight and balance of the aircraft may be adversely affected by alternative engines, and the original fuel system may not be adequate or suitable for some engines. Most alternative engines will require a custom engine mount and engine cowl. Zenith Aircraft Company does not manufacture or directly support engines.
