Formed Acrylic Bubble Door Option Kit
"Better Visibility and More Cabin Width"

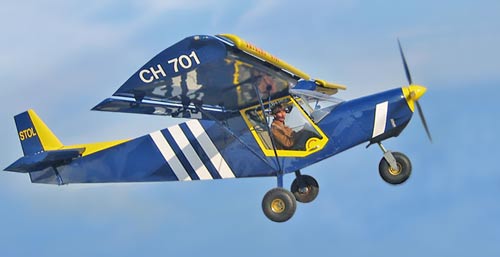

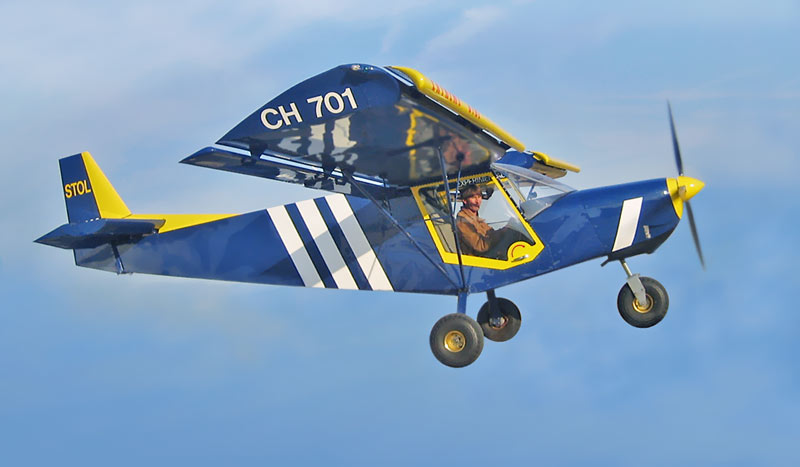

STOL CH 701 with the Bubble Doors

BUBBLE DOOR OPTION KIT for the STOL CH 701

The formed acrylic bubble doors maximize both the cabin width and visibility. The formed door is hinged on the top and has a 3 1/4" (82 mm.) dome for additional space.

Approximate dimesions; subject to change.

The full bubble door provides outstanding side and downward visibility. The door is fitted with the standard locking door latch (at bottom front of each door).  The new domed bubble doors comes with a composite door frame (which replaces the aluminum tube frame of the previous bubble door), ready to install directly to the cabin frame.

The doors are hinged on the top with a "piano hinge" and can be easily removed for summer operation without the doors.

Bubble door option kit Bubble door option kit

The "Bubble Doors" are available as an Option Kit Upgrade for $585.00 when ordered with the airframe kit (the cost is higher when purchased separately). The doors hardware (frame, latch, hinge, etc.) is included with the fuselage kit.  Doors hardware can also be purchased separately.

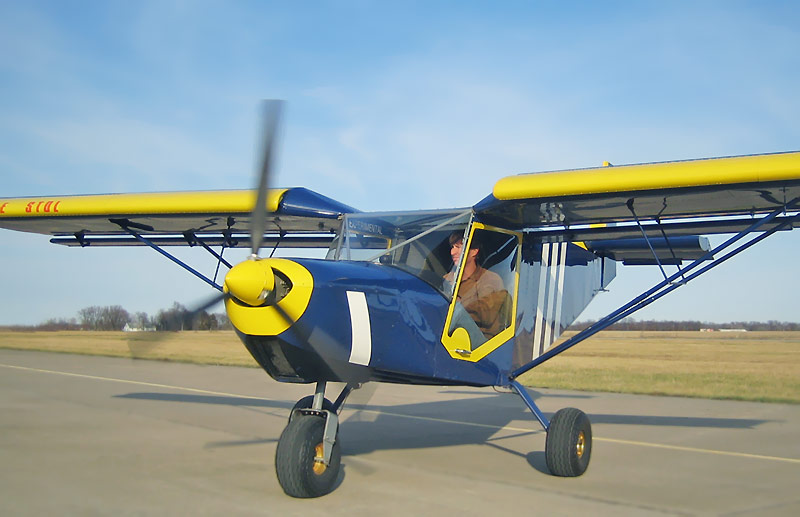

STOL CH 701 with the Bubble Doors

Zenith Aircraft Company has completed testing new bubble doors for the STOL CH 701.

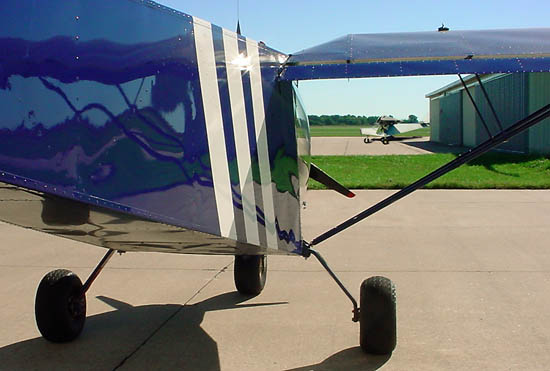

Bubble Doors Rotax 912S Installation - left side - bubble doors

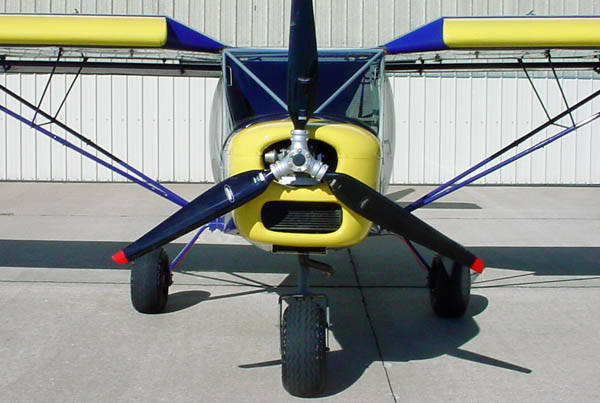

New bubble doors, shown with the Rotax 912S cowl:
Zenith's new Rotax 912S cowl Zenith's new cowl

BUBBLE DOOR
OPTION KIT

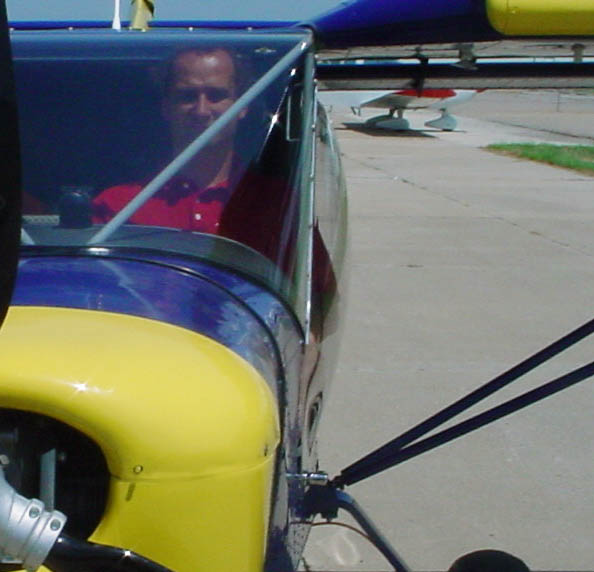

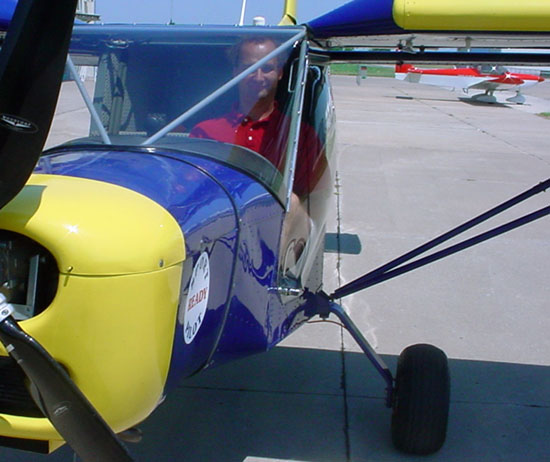

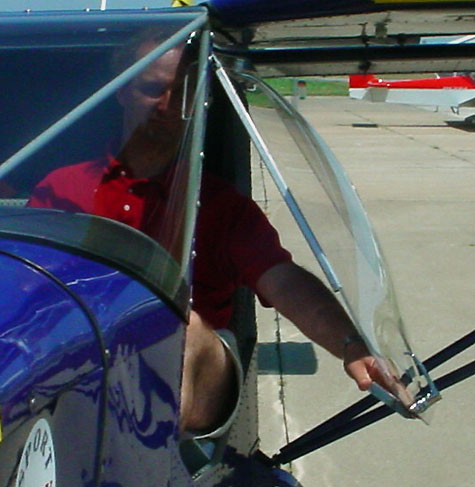

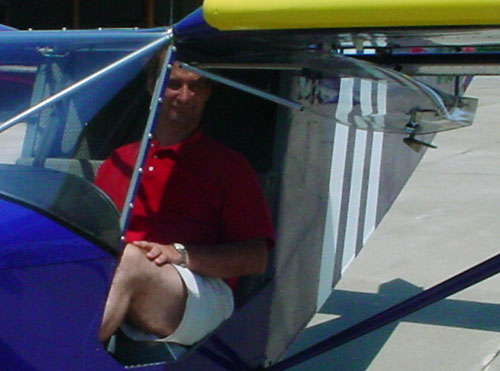

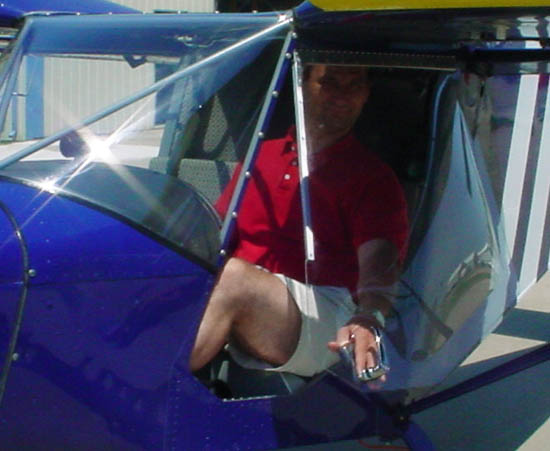

The "first generation" formed acrylic bubble door was fastened (screwed) to the aluminum door tube frame (as shown to the left and right).

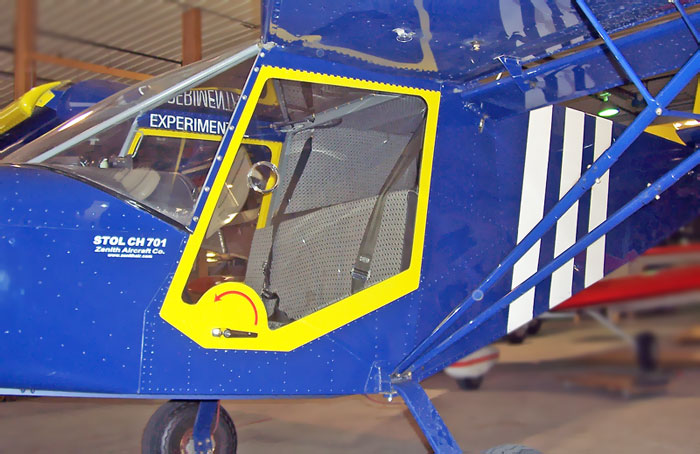

The new "second generation" bubble door comes with a composite door frame, ready to install directly to the cabin frame (see photos above).

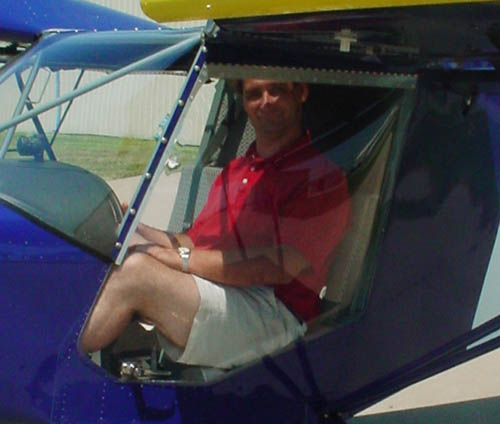

The door is hinged on the top (as pictured) and has a 3 1/4" (82 mm.) dome for additional space.


Related Info

All prices in US funds. All prices, conditions and availability subject to change without notice.  Prices do not include crating or shipping (FOB Factory).
