FOLDING WING OPTION
for the STOL CH 701

STOL CH 701 Folding Wing Option

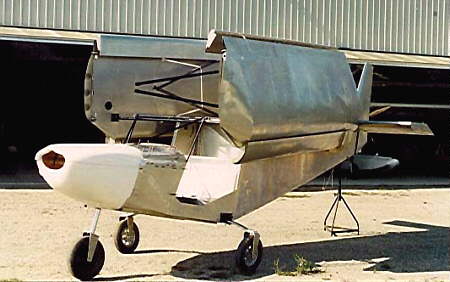

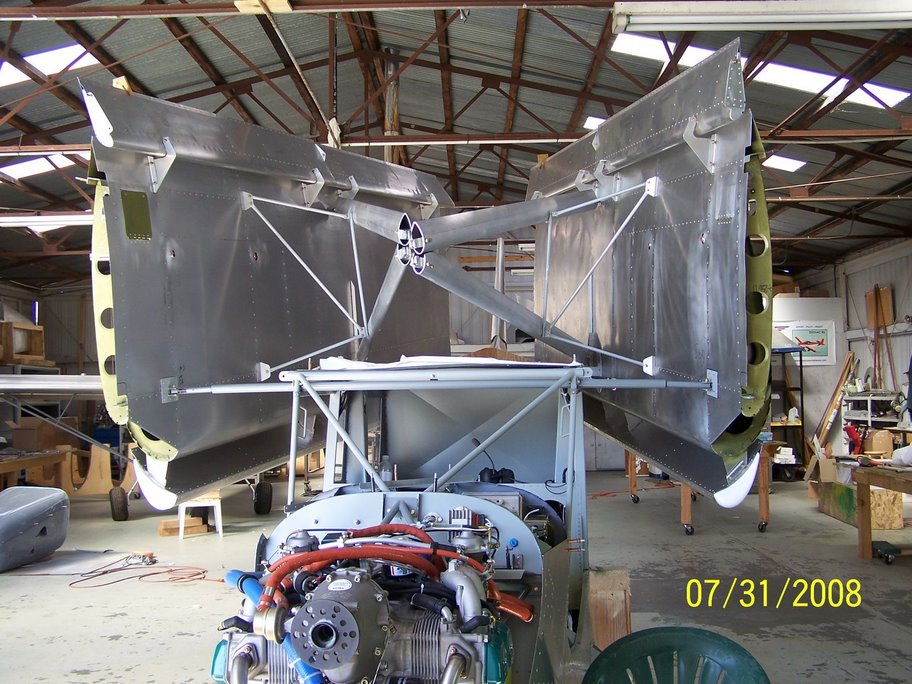

The folding wings option (FWO) allows the STOL CH 701’s wings to be folded back alongside the rear fuselage, providing added convenience for storing or towing the aircraft. To fold the wings, the four wing bolts must first be removed, and then the wing is turned upward 90 and folded back alongside the fuselage, pivoting on the folding wing ‘universal hinge’ attachment. The folding wing option does not change the wings’ attachment points, and thus does not weaken structural attachment points.

Approx. 88" wide (gear), 103" tall (tail), 245" long

STOL CH 701 - Folding Wings Option Kit



The folding wing option is available as a  kit or may be built from the construction drawings. This option is retrofittable on completed aircraft, or may be incorporated as the STOL CH 701 is constructed. Unlike fabric covered or composite aircraft, the STOL CH 701’s durable all-metal airframe is suitable for continuous outdoor storage, diminishing the need of folding the wings for hangaring or protected storage.

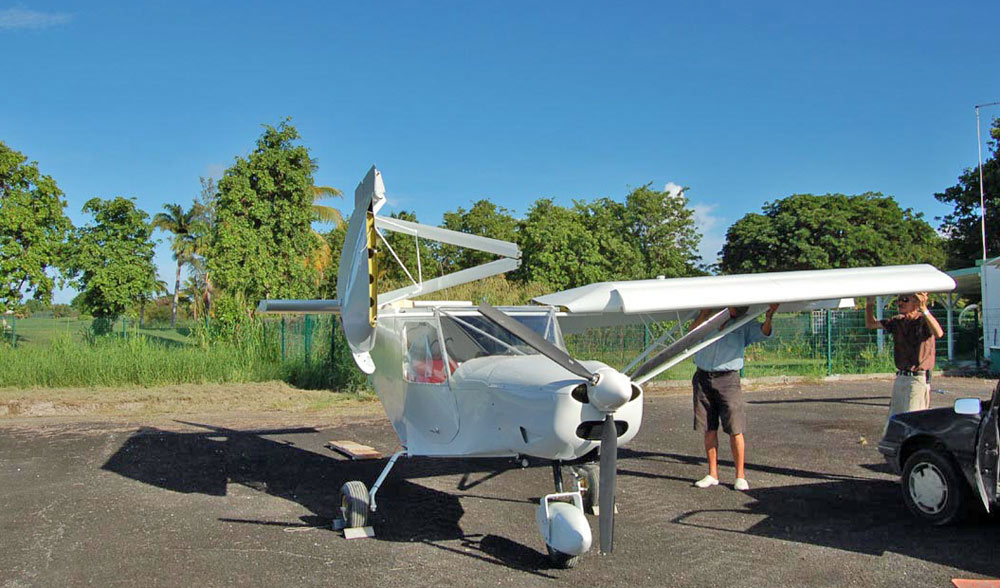

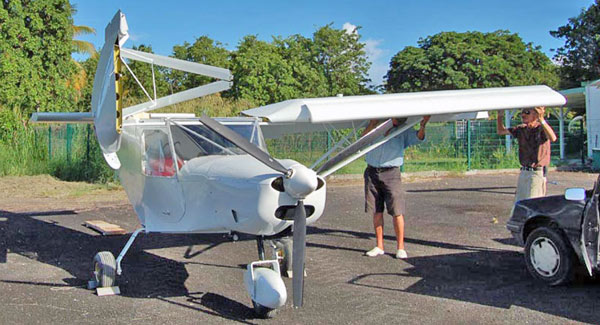

Folding tge STOL CH 701 wings (in Japan)

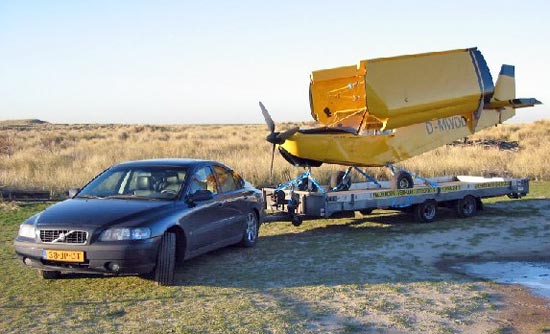

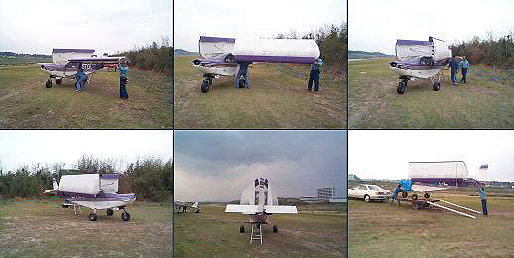

STOL CH 701 with the Folding Wings Option

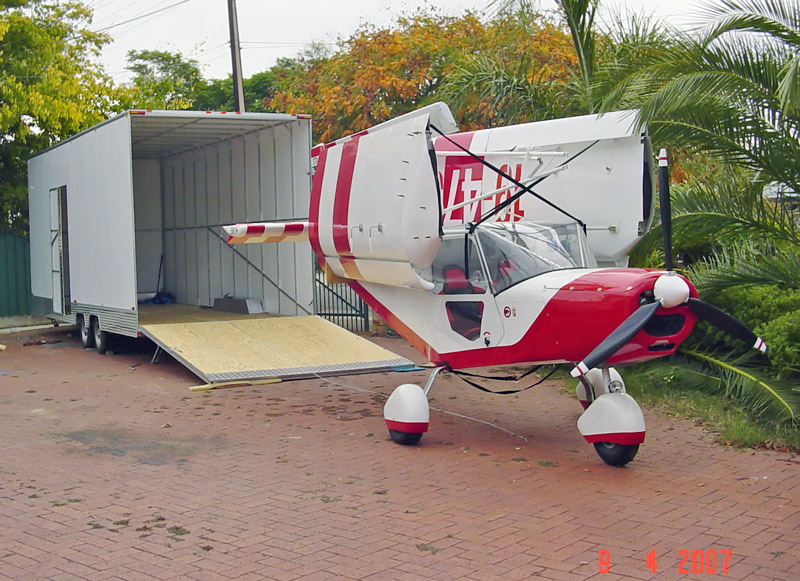

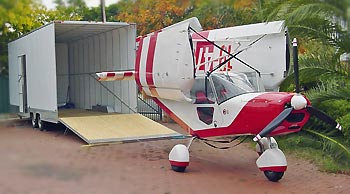

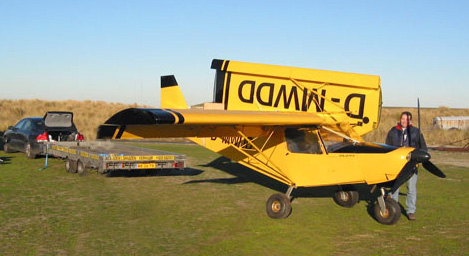

with a custom trailer for storage and ground transportation:

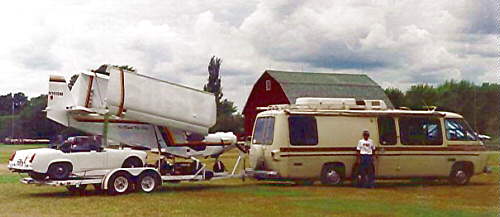

STOL CH 701 - folded wings

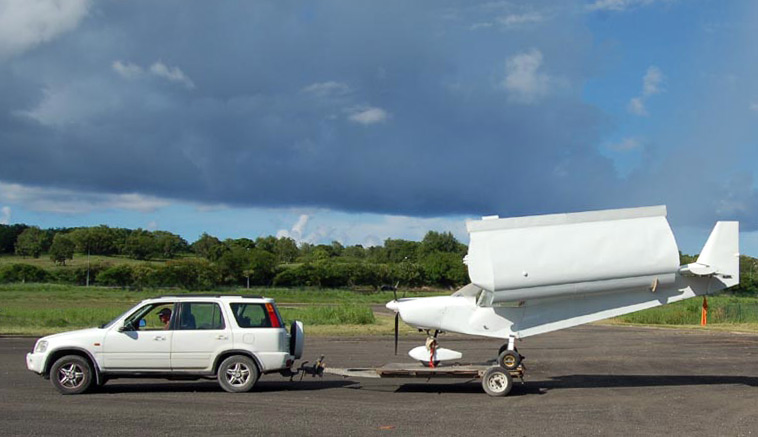

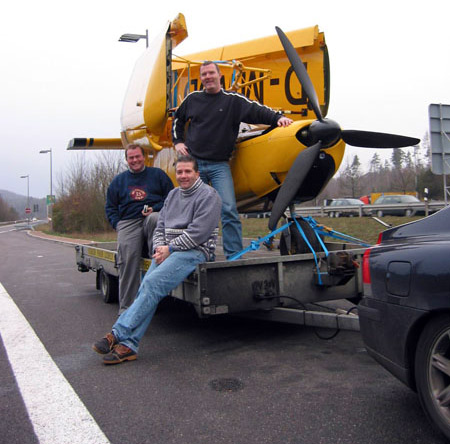

The STOL CH 701 with the Folding Wings Option:

STOL CH701 Folding Wing Option (FWO)

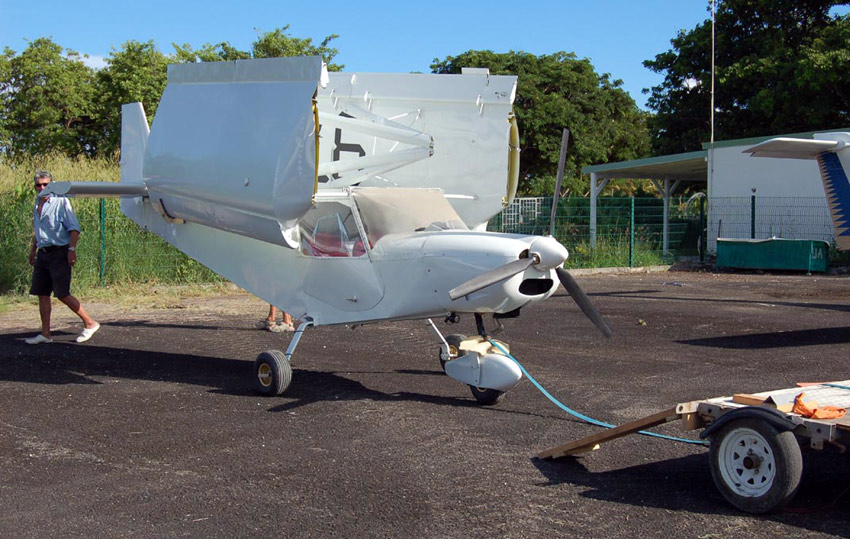

STOL CH 701 with folded wings Folded Wings
folded wings

Note: Above top schematics are for illustrative purposes only. Not to scale.
