JABIRU 3300 Engine

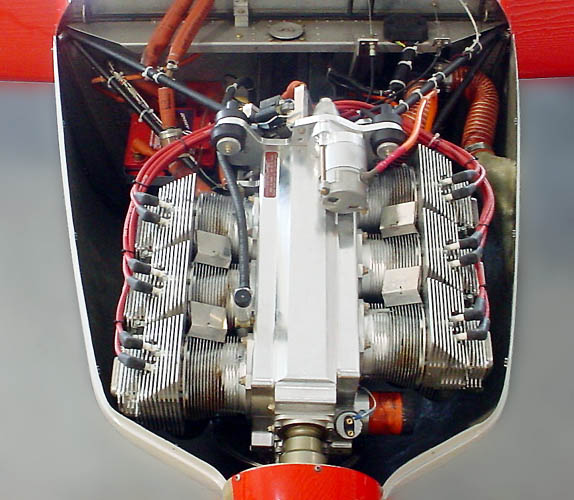

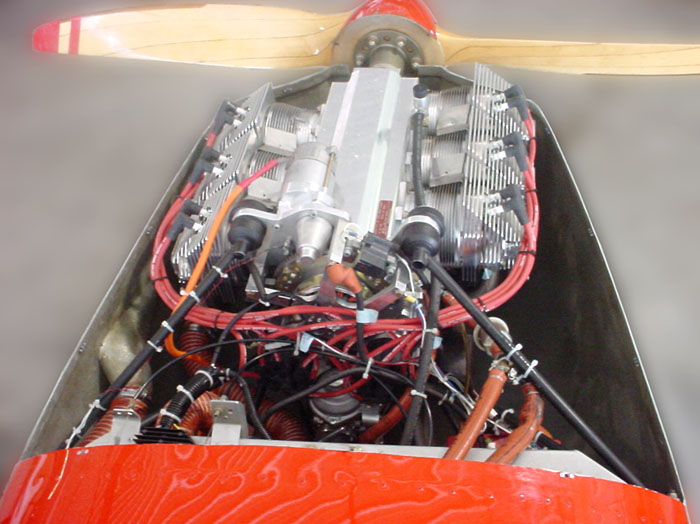

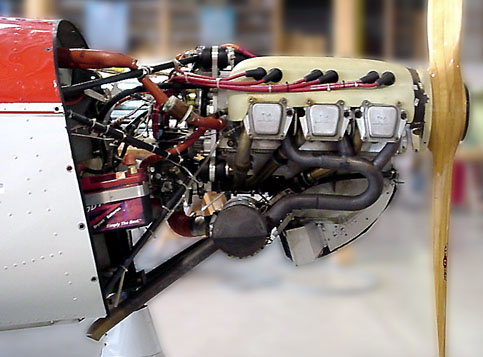

Jabiru 3300 - six cylinder air-cooled

The Jabiru 3300 is a six-cylinder direct-drive air-cooled aircraft engine from Jabiru Aircraft Pty. Ltd. (Australia).

ENGINE DETAILS: JABIRU 3300
  • Four Stroke, 3300cc (200 cubic inches)
  • 6 Cylinder Horizontally Opposed
  • Weight: 180 lbs. (81 kg.) incl. Exhaust, Carburetor, Starter Motor, Alternator & Ignition System & Accessory pack.
  • Machined Aluminum Alloy Crankcase
  • Overhead Valves (OHV) - Push Rod Operated
  • Wet Sump Lubrication
  • Direct Propeller Drive (no reduction unit)
  • Dual Transistorized Magneto Ignition
  • Alternator - 20 Amp
  • Electric Starter
  • Mechanical Fuel Pump
  • Naturally Aspirated - One Pressure Compensating Carburetor

Predicted Performance Points:

  • 120 hp @ 3300 rpm
  • 110 hp @ 3000 rpm
  • 100 hp @ 2750 rpm
  • 93 hp @ 2551 rpm
  • 90 hp @ 2475 rpm
  • 80 hp @ 2200 rpm

Jabiru 3300 Performance


Specifications: Jabiru 3300 A

Displacement: 3300 cc. (200 cu.in.)
Bore: 97.5 mm.
Stroke: 74 mm.
Compression: 8.3 : 1
Prop Rotation: Clockwise
Firing Order: 1 - 4 - 5 - 2 - 3 - 6
Power Rating: 100 hp @ 2750 rpm (see above)
Fuel Consumption @ 75%: 5.0 US Gal/Hour (gph)
Fuel: 100/130 Avgas or 92+ octane Mogas
Oil: Aeroshell W100 (or equivalent)
Oil Capacity: 3.5 qts. (3.75 l.)
Spark: NGK D9EA (common automotive)

Some highlights:

  • Engine TBO: The engine has a published TBO of 2,000 hours.

  • The case & internal parts are machined from solid steel bar or aluminum billet. The oil sump is only cast part.

  • Ignition: Dual separate magnetos with redundant distributors & plugs. No points! No battery power required for operation. Spark plugs are NGK and commonly available.

  • All engines include: Starter, Exhaust System, Alternator, Regulator, Starter Solenoid, Cooling Ducts, Prop Guides, Oil Cooler Kit, Engine mount Bushings and mounting hardware.

  • Warranty: One year from delivery. Delayed warranty start available on request .

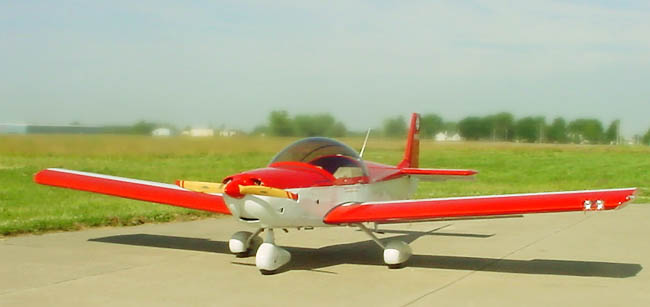

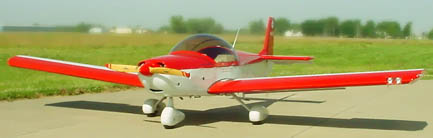

ZODIAC XL - JABIRU Powered

For more information about the Jabiru 3300 engine:

Jabiru Engine Installation Seminar on DVD Jabiru Engine Installation Seminar on DVD
This video was filmed on location at a hands-on workshop style seminar provided by the technicians at JabiruUSA. The purpose of the seminar was to train those aircraft builders that have purchased Jabiru engines how to properly install their firewall forward components.  The Zodiac CH 601 and STOL CH 701 aircraft were used as the classroom demonstration examples for the engine installation.
Presented by HomebuiltHELP.com, this affordable DVD video is nearly 2.5 hours in length and is divided into various video chapters to make navigation and review of desired sections fast and easy.  Click here for more info and to order a copy.
  • Click here for pricing and availability information on the Jabiru firewall-forward engine packages for the ZODIAC.


NOTE: All above information is subject to change and revision without prior notice. Source: JABIRU.
The above resources are provided for informational purposes only - Zenith Aircraft Company does not manufacture or directly support engines installed in the ZODIAC kit aircraft.
