ZODIAC CH 601 Series Price Information

Flying the ZODIAC!

You’ve dreamed of owning and building your own aircraft: The ZODIAC is the answer to your dreams - offering you superior performance, capabilities, versatility, and comfort, and, best of all, the ZODIAC is an affordable all-metal kit aircraft you can build yourself without special skills or tools.

Zenith Aircraft Company is a pioneer in the kit aircraft manufacturing industry, with more than twenty years experience designing and building quality aircraft kits for both first-time builders and demanding sport pilots. With this invaluable experience, Zenith Aircraft Company provides builders with award-winning designs and kits, reducing your risks in purchasing a kit aircraft, and assuring the builder of ongoing and direct factory service and support.

ZODIAC Airframe Kit

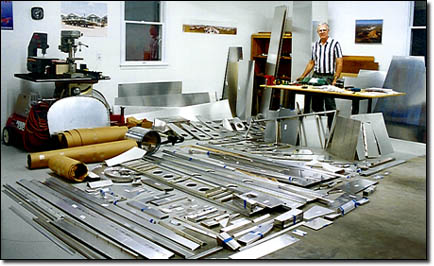

A Zodiac builder inventories the airframe kit.

The high quality of the ZODIAC design and kit assures you that this is one project you’ll be proud to own and fly for many years.

Building your own aircraft is going to be one of the most challenging and rewarding undertakings you’ll ever accomplish: imagine, you’ll be enjoying the thrills of flying an aircraft that you’ve built yourself! Few people get to experience the sensation and freedom of flying. Even fewer are also rewarded by flying an airplane that they’ve built themselves. The ZODIAC will help you realize your dreams like no other kit aircraft!

Zenith Aircraft Company has made it easy for you to get in the pilot's seat of your own ZODIAC. Start building from:


PRICE LIST SUMMARY

PLANS, MANUAL & PHOTO GUIDE
Detailed blueprints of the complete airframe and components, construction manual and photo guide, supplied with aircraft serial number: All you need to ‘scratch-build’ the ZODIAC. Plans, manual and photo guide are included with the complete airframe kit.
Add $15.00 for overseas Air Mail shipping. [New 5th edition Drawings]
ZODIAC CH 601 HD / UL model: $ 315.00
Super ZODIAC CH 601 HDS model: $340.00

ZODIAC XL Drawings and Manuals Click here
COMPLETE AIRFRAME KIT
The standard ZODIAC kit comes with all airframe kit parts to build the ZODIAC aircraft: The complete kit includes the factory riveted wing spars, pre-formed sheet-metal parts (ribs, skins, etc.), factory-welded parts, landing gear (tricycle or tail-wheel), standard fuel system, canopy, controls, and all hardware required for assembly. Standard features of the airframe kit include electric elevator trim tab, extended rear baggage compartment, dual wing baggage lockers, welded steel cabin access steps, wheels with hydraulic disk brakes, and more (see equipment list for details). Not included in the airframe kit: powerplant and instruments packages, paint, and upholstery.
ZODIAC CH 601 HD / UL model: $ 12,620.00
Super ZODIAC CH 601 HDS model: $13,640.00
ZODIAC XL Click here
ROTAX 912 - 80 hp - POWERPLANT PACKAGE
RotaxRotax 912 UL 4 engine (80-HP, four cycle, dual ignition).  The firewall-forward accessories include the engine mount, vibration dampeners, generator, voltage regulator, exhaust and intake manifolds, ‘easy-access’ fiberglass engine cowl, radiator cooling system, oil reservoir, dual carburetors, GSC three-blade ground- adjustable propeller with spinner, engine controls, key and ignition, hardware and Rotax installation and operating manuals. Battery not included. The Instruments Package includes all the basic flight instruments and engine gauges for the Rotax 912 powerplant: Airspeed, Ball, Magnetic Compass, Altimeter, Tachometer (RPM), Oil Temperature & Pressure, Coolant Temperature, Fuel Pressure, and Hourmeter. Accessories included. Click here for additional details about the Rotax 912.
80-hp Rotax 912 UL 2 Aircraft Engine (as supplied by Rotax): call for prices
Firewall-Forward Accessories for Rotax 912 Installation: call for prices
Rotax 912 Instruments Package: call for prices
ROTAX 912 S - 100 hp - POWERPLANT PACKAGE
RotaxThe ‘firewall-forward’ accessories for the 100-hp Rotax 912S engine is the same as for the Rotax 912 except that a three-blade ground-adjustable Warp Drive propeller is supplied. Engine is supplied with an installed gearbox slipper clutch. Click here for additional details about the Rotax 912 ULS S.
Rotax 912 ULS 2 Aircraft Engine (as supplied by Rotax), with installed gearbox slipper clutch and heavy-duty starter: call for prices
Firewall-Forward Accessories for Rotax 912S: call for prices
Rotax 912 Instruments Package: call for prices
COMPONENT KITS
You may choose to purchase sections of the complete kit to ‘buy-as-you-build’ (instead of ordering the complete airframe kit as a single package). The Plans and Manuals must be purchased separately. Individual airframe parts and components are also available. NEW PRICING OPTIONS.
COMPONENT KITS CH 601 HD CH 601 HDS CH 601 UL
WINGS & AILERONS KIT
Includes both outer wing sections, plus center wing spar.
$3,550.00 $4,580.00 $3,420.00
TAIL KIT
Now includes electric trim tab kit and fiberglass fairing tips.
1,495.00 1,495.00 1,495.00
FUSELAGE KIT
Includes center wing section less center wing spar (wing kit).
4,570.00 4,570.00 4,530.00
AIRFRAME KIT #1
(above 3 items)
9,450.00 10,450.00 9,250.00
GEARS & WHEELS KIT 1,300.00 1,300.00 1,260.00
CONTROLS KIT 720.00 720.00 720.00
CANOPY KIT 940.00 940.00 940.00
FUEL SYSTEM KIT 730.00 730.00 730.00
SYSTEMS KIT (#2)
(above 4 items)
3,620.00 3,620.00 3,590.00
Wings and ailerons kit includes center wing section.
KIT OPTIONS
TAIL-WHEEL GEAR CONFIGURATION
No Cost Option. For tail-wheel buffs, the tail-dragger gear option replaces the standard tricycle gear (with steerable nosewheel).
No Cost Option
WING TANKS & FUEL SYSTEM KIT (PAIR)
Seven U.S. Gallons each, mounted inside the wing baggage locker to supplement the main header tank. Kit includes electric pump and fuel lines and connectors. A wing-tank only option is available, as well as a smaller fuselage header tank.
$695.00
WHEEL FAIRINGS KIT
Fiberglass wheel fairings increase aerodynamics, and give the ZODIAC a sleek look. Price EACH:
$92.50
NAV / STROBE LIGHT KIT
T
wo wingtip combination navigation / strobe lights (for mounting on wing tips), with a white tail light assembly for the rudder.  Click here for details
$495.00
STROBE LIGHTS KIT
Two strobe lights (for mounting on wing tips) make the aircraft very visible in the air. This kit does not include provision for navigation lights.
Click here for details
$238.00

  • Start building the ZODIAC for just $300 with the introductory Starter Kit (complete rudder tail kit).  Click here for details.

ADDITIONAL INFORMATION:


Prices in U.S. funds. All prices, equipment and availability subject to change without prior notice. Prices do not include crating or shipping charges (FOB Factory). Update: 15 April, 2011
