STOL CH 701 Kit Features & Equipment List

New Kit Features - Same Low Price:  The standard STOL CH 701 kit now includes many CNC pre-cut and pre-drilled skins and components, and also includes new updated CAD Drawings and Photo Assembly Manuals.



STOL CH 701 Design Features
CABIN AREA
  • ROOMY SIDE-BY-SIDE SEATING
  • 41-INCH WIDE CABIN
  • LARGE INSTRUMENT PANEL
  • EXTENDED BAGGAGE COMPARTMENT (REAR OF SEATS)
  • EXCELLENT VISIBILITY
  • EASY CABIN ACCESS FROM EITHER SIDE
  • DUAL THROTTLE CONTROLS

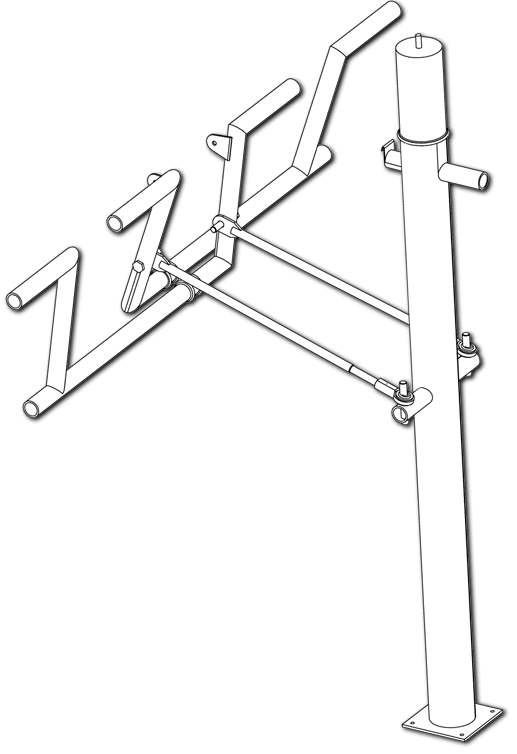

  • DUAL RUDDER PEDALS (RUDDER & NOSE WHEEL)
  • ELECTRIC ELEVATOR TRIM OPTION*
  • TOE BRAKES (LEFT SIDE)
  • NEW "SWING-UP" DOORS
  • CABIN HEAT (WITH ROTAX ENGINES)*
  • INSTRUMENTS PACKAGE (FOR ROTAX ENGINE)*
Kit Features & Equipment Summary
  • LOW BUILD TIME
  • SIMPLE BUILDING TECHNIQUE (BASIC SKILLS AND TOOLS)
  • MODULAR CONSTRUCTION MINIMIZES WORKSHOP SPACE REQUIREMENTS
  • QUALITY PARTS & COMPONENTS
  • YOUR CHOICE: COMPLETE KIT, COMPONENT KITS OR PLANS-ONLY
  • NEW DETAILED CAD DRAWINGS (complete blueprints) – NOT JUST INSTRUCTIONS.
  • LIFETIME TECHNICAL SUPPORT FROM THE FACTORY
  • DURABLE ALL-METAL CONSTRUCTION
  • SUITABLE FOR DIFFERENT ENGINE TYPES (50 - 100 hp)
  • NO MESSY & HAZARDOUS DOPING OR COMPOSITE WORK.
STANDARD KIT EQUIPMENT
  • MANY PRE-DRILLED SKINS! Most flat fuselage and wing skins are supplied pre-drilled from the factory.
  • DUAL WELDED ALUMINUM WING FUEL TANKS (2 x 10 US gallons): Kit includes all basic fuel system plumbing, with gascolator and fuel level senders and gauges.
  • FACTORY-RIVETED WING SPARS AND LOWER CABIN FRAME SIDES
  • FORMED FIBERGLASS TIPS: Wings, flaperons, slats tips.

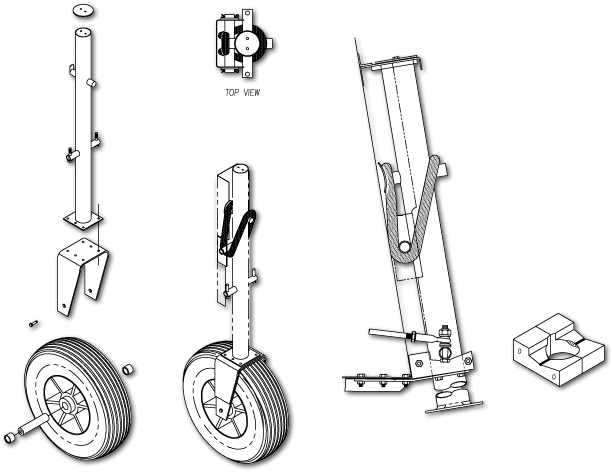

  • FULL LANDING GEAR SYSTEM: Kit includes wheels, tires, and hydraulic brakes.
  • ACRYLIC (PLEXIGLASS) FORMED WINDSHIELD
  • SEAT BELTS WITH SHOULDER HARNESSES.

* Optional equipment available at additional cost.

Equipment, features and availability subject to change without notice. Listed standard equipment is for the complete airframe kit only. Some equipment listed may be optional.
