GEMINI CH 620 - Your Personal Twin-Engine Kit Aircraft

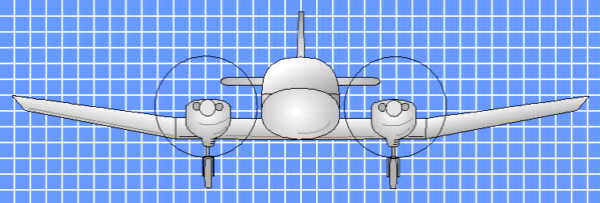

GEMINI CH 620 - Front View

SPECIFICATIONS
LENGTH 19 FEET 5800 MM
HEIGHT 5 FEET 10 IN. 1800 MM
WINGSPAN 27 FEET 3 IN. 8300 MM
WING AREA 123 SQ.FT. 11.5 M.SQ.
WING LOADING 11.8 LB/SQ.FT 57.4 KG/M.SQ.
POWER LOADING 9.0 LBS/HP 4.1 KG/HP
SEATS 2 SIDE-BY-SIDE
CABIN WIDTH 44 INCHES 1110 MM
EMPTY WEIGHT 800 LBS 360 KG
MAX GROSS WEIGHT 1450 LBS 660 KG
USEFUL LOAD 650 LBS 300 KG
FUEL (STD) 34 US GAL (205 LBS) 130 l (93 KG)
ENGINE JABIRU 2200, 4-CYL., 4-CYCLE, AIR COOLED, DIRECT DRIVE
POWER 80 HP (60 kW) @ 3300 RPM
DISPLACEMENT 2210 cc
IGNITION DUAL IGNITION, BREAKERLESS TRANSISTORIZED
STARTER ELECTRIC, 12 V
FUEL CONSUMPTION 3.75 GAL/HR 14 l/HR
PROPELLERS FIXED PITCH, 55-IN DIAM., GROUND ADJUSTABLE

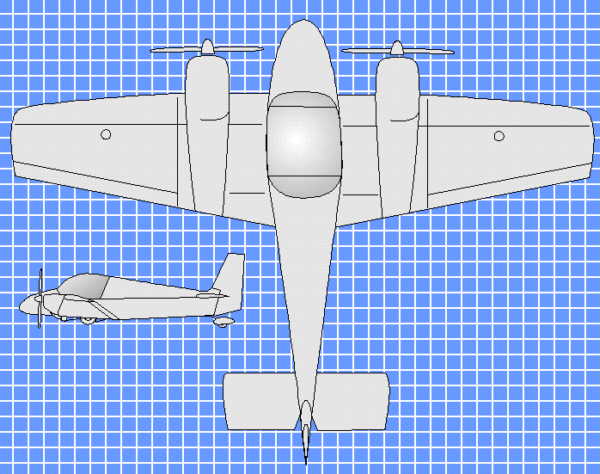

GEMINI CH 620 - Top View

PERFORMANCE
TAKEOFF, GROUND ROLL 450 FT 137 M
TAKEOFF, OVER 50 FT 850 FT 260 M
RATE OF CLIMB, SL 1280 FPM 6.5 M/S
S.E. RATE OF CLIMB, SL 300 FPM 1.5 M/S
TOP SPEED 155+ MPH 250+ KM/H
CRUISE SPEED, 75% 145 MPH 233 KM/H
RANGE (NO RESERVE) 650 MILES 1045 KM
STALL SPEED (Vso) 55 MPH 88 KM/H
LANDING, GROUND ROLL 450 FT 137 M
LANDING, OVER 50 FT. 800 FT 244 M
CEILING 12,000+ FT 3,660+ M

Source: Zenair Ltd. All figures are based on factory prototype flight test results, subject to change and revision.

The Gemini CH 620 project is still under development and kits are not available.
AVAILABILITY TO BE ANNOUNCED UPON COMPLETION OF DEVELOPMENT PROGRAM
