STOL CH 750 ONLINE KIT STORE: SLATS & FLAPERONS SECTION

  • Click here for a detailed schematic of the Slats Assemblies.

  • Click here for a detailed schematic of the Flaperons Assemblies.

  • Click here to quote / order the complete Slats & Flaperons Kit.

NOTE: Current Individual Parts Pricing in the online parts database currently only reflects old pricing (2017 and earlier). Online orders will be updated to current 2018 prices. Call for details.

The following parts are included in the Slats & Flaperons Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

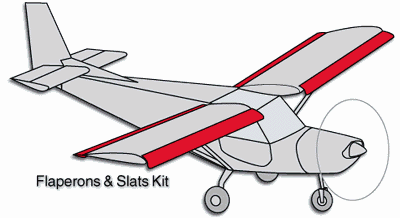

STOL CH 750 SLATS & FLAPERONS SECTION
Part Number Part Description Req. Qty Unit Price Inv. Code
Slats
75S1-1L/0 Left Slat Rib 2 $20.27 A
75S1-1R/0 Right Slat Rib 2 $20.27 A
75S1-1SSL/0 Left Slat Rib (w/ Slat Support Holes) 4 $21.32 A
75S1-1SSR/0 Right Slat Rib (w/ Slat Support Holes) 4 $21.32 A
75S1-2L/0 Left I/B Slat Skin 1 $75.50 A
75S1-2R/0 Right I/B Slat Skin 1 $75.50 A
75S1-3L/0 Left O/B Slat Skin 1 $76.55 A
75S1-3R/0 Right O/B Slat Skin 1 $76.55 A
75S1-4/0 Slat Support 8 $9.98 A
75S1-5L/0 Left Slat Tip 2 $20.48 A
75S1-5R/0 Right Slat Tip 2 $20.48 A
75S1-6/0 Corner Doubler 4 $13.13 A
Flaperons
75A1-1L/0 Left Flaperon Full Rib 2 $19.01 A
75A1-1R/0 Right Flaperon Full Rib 2 $19.01 A
75A1-1RL/1 Left Flaperon Root Rib 1 $20.06 A
75A1-1RR/1 Right Flaperon Root Rib 1 $20.06 A
75A1-2L/0 Left Flaperon Nose Rib 4 $16.28 A
75A1-2R/0 Right Flaperon Nose Rib 4 $16.28 A
75A1-3L/0 Left Flaperon Rear Rib 8 $16.91 A
75A1-3R/0 Right Flaperon Rear Rib 8 $16.91 A
75A1-4L/0 Left I/B Flaperon Spar 1 $38.64 A
75A1-4R/0 Right I/B Flaperon Spar 1 $38.64 A
75A1-5L/0 Left O/B Flaperon Spar 1 $39.69 A
75A1-5R/0 Right O/B Flaperon Spar 1 $39.69 A
75A1-6/0 Flaperon Control Horn 2 $10.24 A
75A1-7/0 Splice Plate 4 $7.35 A
75A1-8L/2 Left I/B Flaperon Skin 1 $86.42 A
75A1-8R/2 Right I/B Flaperon Skin 1 $86.42 A
75A1-9L/2 Left O/B Flaperon Skin 1 $90.52 A
75A1-9R/2 Right O/B Flaperon Skin 1 $90.52 A
75A2-1/0 Hinge Bracket 8 $5.41 A
75A2-2/0 Hinge Bushing 8 $2.63 A
75A2-3/1 Flaperon Rib Angle 6 $3.41 A
75A2-4L/0 Left Flaperon Tip 1 $25.20 A
75A2-4R/0 Right Flaperon Tip 1 $25.20 A
Slats & Flaperons Hardware
A4 1/8" Countersunk Blind Rivet 1800 $0.08 A
A5 5/32" Countersunk Blind Rivet 70 $0.09 A
AN3-4A  3/16" Bolt 16 $0.75 A
AN365-1032 3/16" Nylon S.L. Nut 16 $0.18 A
AN960-10 3/16" ID Washer 16 $0.04 A
L L Angle 1FT $2.43 A

© Zenith Aircraft Co.   20 Feb 2018
