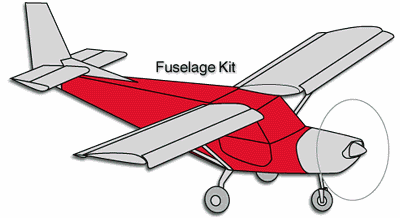

STOL CH 750 ONLINE KIT STORE: FUSELAGE SECTION

  • Click here for a detailed schematic of the Rear Fuselage Assemblies.

  • Click here for a detailed schematic of the Forward Fuselage Assemblies.

  • Click here to quote / order the complete Fuselage Kit.

NOTE: Current Individual Parts Pricing in the online parts database currently only reflects old pricing (2017 and earlier). Online orders will be updated to current 2018 prices. Call for details.

The following parts are included in the Fuselage Kit.  Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 750 FUSELAGE SECTION
Part Number Part Description Req. Qty Unit Price Inv. Code
Rear Fuselage
75F1-1/2 Bottom Fuselage Skin 1 $253.41 A
75F1-2/0 Rear Bottom Fuselage Skin 1 $34.60 A
75F1-3/3 Fuselage Side Skin 2 $279.29 A
75F1-4/0 Rear Fuselage Side Skin 2 $41.55 A
75F1-5/1 Access Cover 1 $44.28 A
75F2-1/1 Top Skin 1 $261.58 A
75F2-2/0 Rear Fuselage Longerons 4 $98.77 A
75F2-3/1 Rear H.T. Frame 1 $71.66 A
75F2-4/1 Forward H.T. Frame 1 $76.57 A
75F2-5L/0 Left H.T. Attachment Gusset 2 $9.67 A
75F2-5R/0 Right H.T. Attachment Gusset 2 $9.67 A
75F2-6/0 H.T. Attachment Bracket 4 $22.21 A
75F2-7/0 Upper Rudder Hinge Plate 1 $29.16 A
75F3-1/0 Middle Rudder Hinge Plate 1 $23.71 A
75F3-2/0 Lower Rudder Hinge Plate 1 $23.71 A
75F3-3/0 Rudder Hinge Shim 1 $6.13 A
75F3-4L/1 Left Upright 1 $40.87 A
75F3-4R/1 Right Upright 1 $40.87 A
75F3-5L/0 Left Elevator Middle Rear Rib 1 $28.07 A
75F3-5R/0 Right Flaperon Control Cover 1 $28.07 A
75F3-6/1 Top Channel 1 $58.31 A
75F3-7/1 Rear Top Channel 1 $71.53 A
75F3-8L/0 Left Shoulder Harness Attachment 1 $29.36 A
75F3-8R/0 Right Shoulder Harness Attachment 1 $26.36 A
75F3-9/0 Rear Top Channel Angle 1 $37.47 A
75F4-1L/1 Left Side Channel 1 $57.90 A
75F4-1R/1 Right Side Channel 1 $57.90 A
75F4-2L/1 Left Side Channel Cover 1 $57.90 A
75F4-2R/1 Right Side Channel Cover 1 $57.90 A
75F4-3/1 Top Doubler 2 $45.10 A
75F4-4/1 Rear Wing Attachment 2 $40.87 A
75F4-5/0 Torque Tube Bearing Channel 1 $46.59 A
75F4-6L/0 Left Gusset 1 $11.31 A
75F4-6R/0 Right Gusset 1 $11.31 A
75F4-7/0 Side Skin Gusset 2 $22.62 A
75F4-8/0 Bottom Skin Gusset 2 $16.35 A
75F4-9/0 Longeron Gusset 2 $8.17 A
75F5-1/1 Torque Tube Bearing Support 1 $38.76 A
75F5-2/1 Baggage Back 1 $57.90 A
75F5-3/0 Baggage Floor 1 $37.19 A
75F5-4/0 Right Baggage Upright 1 $35.42 A
75F5-5/0 Left Baggage Upright 1 $35.42 A
75F5-6/1 Right Lower Baggage Floor 1 $41.14 A
75F6-1/1 Left Lower Baggage Floor 1 $41.14 A
75F6-2/0 Right Control Tunnel Side 1 $32.97 A
75F6-3/0 Left Control Tunnel Side 1 $32.97 A
75F6-4/0 Control Tunnel Top 1 $26.98 A
75F6-5/0 Baggage Angle 1 $11.17 A
75F6-6/0 Side Channel Doubler 2 $15.67 A
75F6-7L/0 Left Baggage Back Channel 1 $49.73 A
75F6-7R/0 Right Baggage Back Channel 1 $49.73 A
75F18-1L/0 Left Vertical L Angle #1 1 $17.03 A
75F18-1R/0 Right Vertical L Angle #1 1 $17.03 A
75F18-2L/0 Left Diagonal L Angle #1 1 $17.03 A
75F18-2R/0 Right Diagonal L Angle #1 1 $17.03 A
75F18-3L/0 Left Vertical L Angle #2 1 $17.03 A
75F18-3R/0 Right Vertical L Angle #2 1 $17.03 A
75F18-4L/0 Left Diagonal L Angle #2 1 $17.03 A
75F18-4R/0 Right Diagonal L Angle #2 1 $17.03 A
75F18-5L/0 Left Vertical L Angle #3 1 $17.03 A
75F18-5R/0 Right Vertical L Angle #3 1 $17.03 A
75F18-6L/0 Left Diagonal L Angle #3 1 $17.03 A
75F18-6R/0 Right Diagonal L Angle #3 1 $17.03 A
75F18-7L/0 Left Vertical L Angle #4 1 $17.03 A
75F18-7R/0 Right Vertical L Angle #4 1 $17.03 A
75F18-8L/0 Left HT Diagonal L Angle  1 $17.03 A
75F18-8R/0 Right HT Diagonal L Angle  1 $17.03 A
75F19-1/0 Longitudinal Z Angle #1 and #2  2 $17.03 A
75F19-2/0 Lateral Z Angle #3  1 $17.03 A
75F19-3L/0 Left Lateral L Angle #1  1 $17.03 A
75F19-3R/0 Right Lateral L Angle #1  1 $17.03 A
75F19-4/0 Diagonal L Angle #1  1 $17.03 A
75F19-5/0 Lateral L Angle #2 1 $17.03 A
75F19-6/0 Diagonal L Angle #2  1 $17.03 A
75F19-7/0 Lateral L Angle #3 1 $17.03 A
75F19-8/0 Diagonal L Angle #3  1 $17.03 A
75F19-9/0 Lateral L Angle #4 1 $17.03 A
75F20-1/0 Lateral L Angle #1 1 $17.03 A
75F20-2/0 Diagonal L Angle #1  1 $17.03 A
75F20-3/0 Lateral L Angle #2 1 $17.03 A
75F20-4/0 Diagonal L Angle #2  1 $17.03 A
75F20-5/0 Lateral L Angle #3 1 $17.03 A
75F20-6/0 Diagonal L Angle #3 1 $17.03 A
75F20-7/0 Lateral L Angle #4 1 $17.03 A
Forward Fuselage
75-F-7L/1 Left  Cabin Side Assembly 1 $318.80 A
75-F-7R/1 Right Cabin Side Assembly 1 $318.80 A
75F7-1L/2 Left Cabin Side Skin 1 $510.90 A
75F7-1R/2 Right Cabin Side Skin 1 $510.90 A
75F8-1/2 Firewall 1 $209.81 A
75F8-2/0 Firewall Bottom Stiffener 1 $19.07 A
75F8-3L/0 Left Firewall Side Stiffener 1 $18.39 A
75F8-3R/0 Right Firewall Side Stiffener 1 $18.39 A
75F8-4/0 Firewall Top Stiffener 1 $60.97 A
75F8-5/0 Firewall Rear Reinforcement 1 $40.53 A
75F8-6/0 Side Brace 2 $9.88 A
75F8-7/0 Steering Rod Slide 2 $10.90 A
75F8-8L/0 Left Slide Cover 1 $20.78 A
75F8-8R/0 Right Slide Cover 1 $20.78 A
75F9-1/0 Forward Gusset 1 $10.22 A
75F9-2/0 Upper Angle 1 $19.07 A
75F9-3L/0 Left Gear Gusset 1 $19.75 A
75F9-3R/0 Right Gear Gusset 1 $19.75 A
75F9-4/0 Center Firewall Stiffener 1 $54.63 A
75F9-5/0 Center Firewall Doubler 1 $51.91 A
75F9-6/0 Upper Bearing 1 $67.30 A
75F9-7/0 Upper Firewall Channel 1 $17.23 A
75F10-1/2 Gear Channel 1 $85.08 A
75F10-2/0 Gear Channel Doubler 4 $5.86 A
75F10-3/1 Cabin Floor 1 $85.56 A
75F10-4/0 Floor Stiffener 1 $30.52 A
75F10-5/0 Heel Support 1 $36.65 A
75F10-6L/0 Left Heal Support Gusset 1 $9.40 A
75F10-6R/0 Right Heal Support Gusset 1 $9.40 A
75F10-7/0 Pedal Bearing Channel 1 $40.74 A
75F10-8L/0 Left Cabin Floor Stiffener 1 $15.67 A
75F10-8R/0 Right Cabin Floor Stiffener 1 $15.67 A
75F11-1/0 Seat Channel 1 $62.26 A
75F11-2L/1 Left Seat Support 1 $39.17 A
75F11-2R/1 Right Seat Support 1 $39.17 A
75F11-3L/1 Left Rear Seat Channel 1 $14.99 A
75F11-3R/1 Right Rear Seat Channel 1 $11.00 A
75F11-4L/1 Left Seat Base 1 $41.96 A
75F11-4R/1 Right Seat Base 1 $41.96 A
75F11-5/0 Arm Rest Top 1 $22.34 A
75F11-6/1 Right Arm Rest Side 1 $38.69 A
75F11-7L/0 Left Seat Base Angle 1 $10.22 A
75F11-7R/0 Right Seat Base Angle 1 $10.22 A
75F12-1/0 Left Arm Rest Side 1 $38.69 A
75F12-2L/1 Left Forward Side Skin 1 $61.72 A
75F12-2R/1 Right Forward Side Skin 1 $61.72 A
75F12-3/0 Doubler Strip 2 $17.71 A
75F12-4/0 Cabin Frame Gusset 2 $9.54 A
75F12-5/0 Lower Bearing Support 1 $32.15 A
75F12-6L/3 Left Door Sill 1 $21.25 A
75F12-6R/3 Right Door Sill 1 $21.25 A
75F12-7/1 Forward Angle 6 $8.31 A
75F13-1L/0 Left Lower Longeron 1 $20.44 A
75F13-1R/0 Right Lower Longeron 1 $20.44 A
75F13-3L/0 Left Lower Seat Belt Attachment 1 $24.66 A
75F13-3R/0 Right Lower Seat Belt Attachment 1 $24.66 A
75F13-7L/0 Left I/B Seat Belt Attachment 1 $24.52 A
75F13-7R/0 Right I/B Seat Belt Attachment 1 $24.52 A
75F14-1L/2 Left Lower Engine Mount Fitting 1 $24.46 A
75F14-1R/2 Right Lower Engine Mount Fitting 1 $24.46 A
75F14-2L/1 Left Upper Engine Mount Fitting 1 $34.88 A
75F14-2R/1 Right Upper Engine Mount Fitting 1 $34.88 A
75F14-3L/3 Left Gear Strut Fitting 1 $186.85 A
75F14-3R/3 Right Gear Strut Fitting 1 $186.85 A
75F15-1/3 Cabin Frame 1 $647.14 A
75F16-1/0 Instrument Panel 1 $71.39 A
75F16-2/2 Forward Top Skin 1 $133.79 A
75F16-3/0 Top Window Channel 1 $19.21 A
75F16-4/0 Top Window Channel Cover 1 $20.44 A
75F16-5/0 Windshield Side Trim 2 $20.64 A
75F16-6/0 Torque Tube Bearing Support 2 $5.00 A
75F17-1/0 Formed Windshield 1 $497.82 A
75F17-2/0 Top Window 1 $88.83 A
75F17-3/0 Top Window Trim 1 $13.28 A
75F17-4/0 Middle Window 2 $47.68 A
75F17-5/0 Rear Window 2 $45.98 A
75F17-6L/0 Left Top Window Rib 1 $52.45 A
75F17-6R/0 Right Top Window Rib 1 $52.45 A
75F13-2L/0 Left Seat Back Support 2 $47.68 A
75F13-2R/0 Right Seat Back Support 2 $47.68 A
75F13-4/1 Seat Back 2 $88.56 A
75F13-6/2 Seat Pan 2 $46.05 A
Fuselage Hardware
A3 3/32" Domed Blind Rivet 30 $0.08 A
A4 1/8" Countersunk Blind Rivet 2900 $0.08 A
A5 5/32" Countersunk Blind Rivet 1300 $0.09 A
A6 3/16" Blind Rivet 72 $0.20 A
AN3-3A Bolt 3/16" Bolt 4 $0.70 A
AN3-4A Bolt 3/16" Bolt 26 $0.75 A
AN3-5A 3/16" Bolt 33 $0.70 A
AN3-6A 3/16" Bolt 4 $0.70 A
AN4-6A 1/4" Bolt 2 $1.07 A
AN525-10R7 Machine Screw 10 $0.25 A
MS21047L3 10-32 Nut Plate 10 $0.45 A
42412 5/6 Tie Down Ring w/ Washer & Nut 1 $4.80 A
D33105 5 WIRE ELECTRIC CABLE 1FT $1.43 A
L 4 FT. standard L 7 $1.78 A
