STOL Design
STOL Wing Design:
Leading Edge Wing Slats or Vortex Generators (VG)?

Zenith STOL CH 701

Question
Can I remove the fixed leading edge slats of my STOL CH 701 and replace them with vortex generators (VGs)?:


The following short article is in answer to the above question asked to designer Chris Heintz on his opinion regarding the replacement of the wing leading edge slats with vortex generators (or VGs) on the STOL CH 701 (or CH 801):

By Chris Heintz

When you remove the wing’s leading-edge slats, the wing chord is decreased.  This increases the wing loading as well as the aspect ratio:

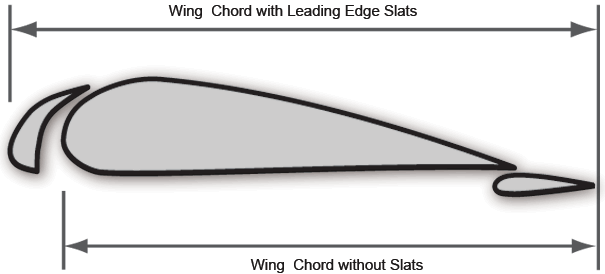

Wing Chord with and without the leading edge slats.  Not to scale. © Chris Heintz, 2007



  • An increased wing loading will need a higher lift coefficient for the same flying speed (resulting in a higher angle of attack and thus limiting forward visibility).
  • A larger aspect ratio will slightly decrease the induced drag of the wing
  • Both together will have a very small drag decrease in cruise as the wing drag is only a part of the total airplane drag (and my STOL designs are not very “clean”), and the stall speed will be higher.

The airfoil of my STOL airplanes is relatively thick with an unusually large leading edge radius.  On this type of airfoil vortex generators (also called micro-vortex generators, or VGs) add very little improvement with respect to the maximum lift coefficient (or stall speed).  Without slats the high lift coefficient allowing take-offs is only achieved in ground effect (it is when the wheels are only 2 to 3 feet above the runway) so you have to accelerate at this low height before you can climb safely.  By adding VGs you do not need as much speed to climb than without the slats, but with leading edge slats you can climb immediately after rotation (thereby maximizing the short field capability of the aircraft)

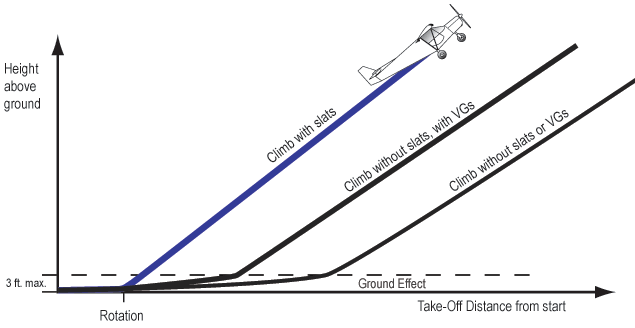

Climb performance.  Illustration only. Not to scale. © Chris Heintz, 2007

The same is also true when landing the aircraft:
The high sink rate (or lower glide ratio) of a STOL airplane allows it to land in a smaller area.  This is best achieved with the leading edge wing slats:

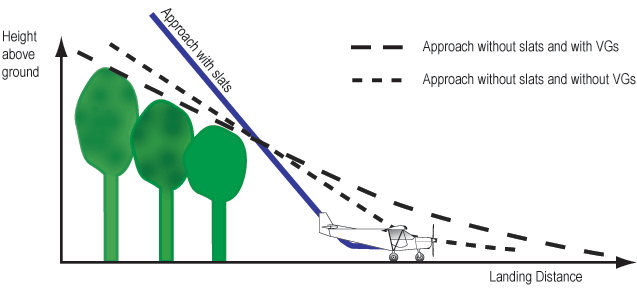

Short Landings. Illustration only. Not to scale. © Chris Heintz, 2007

A higher glide ratio increases the area required to land an aircraft in, and thus diminishes the STOL capability of an aircraft.

From a design standpoint, I have no objection to the removal of the leading edge slats (and their attachment brackets) and replacing them with VGs, but be aware that the take-off distance will be longer and the initial climb rate will not be as good (nor will your approaches over trees be as steep), and the cruise speed will only increase slightly.  I added “STOL” to the name of the CH 701 and CH 801 designs right from the beginning so that it would be immediately obvious that the designs are made for short take-offs and landings (STOL), and replacing the slats with VGs diminishes the STOL capability of these designs.

Use of Vortex Generators:
The use of vortex generators is quite intriguing in its own right (as opposed to replacing the wing leading edge slats) and, when used properly, may improve the stall on small leading edge radius airfoils (so-called laminar airfoils) by “pumping” energy from the free airstream into the boundary layer which will then separate at a higher angle of attack, and the airfoil will have a larger maximum lift coefficient, thus reducing the stall speed.

Note also that because of the above-mentioned “energizing” of the boundary layer with the use of VGs, the local stall can be delayed on a large deflection of a control surface, as illustrated below on the STOL elevator:

STOL CH 701 and CH 801 Horizontal Tail Sections (side view)

 Elevator - with and without micros-vortex generators. Illustration only. Not to scale. © Chris Heintz, 2007

To better understand why (and how) I designed my STOL airplanes the way that I did, I wrote that following article a few years ago:  Anatomy of a STOL Airplane

Note:  It’s my experience that those individuals claiming great “cure-all” results with VGs are also the very same people that are trying to sell them to you, so I’m somewhat skeptical of their claims.

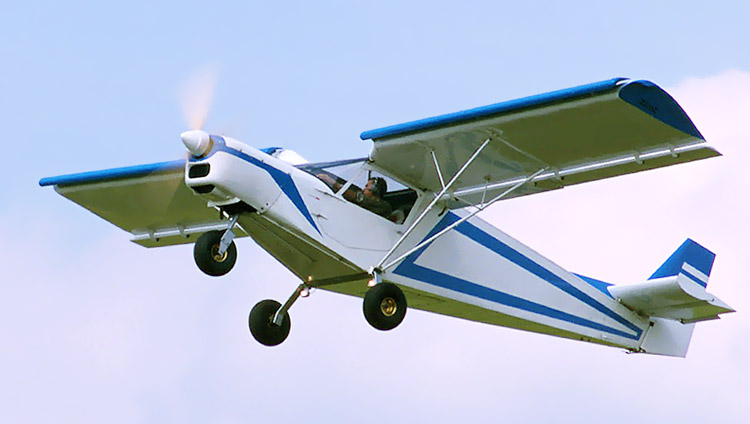

STOL CH 701 with leading edge slats


© Chris Heintz, 2007

Download and print Adobe Acrobat file of the article.

Related Article: Anatomy of a STOL Aircraft: Designing a Modern Short Take-Off and Landing Aircraft.

Click here to read other Chris Heintz design articles.


Additional resources about vortex generators:
