STOL CH 750 Light Sport Utility Airplane

Instrument Panel, as equipped on the STOL CH 750 prototype factory demonstrator aircraft (for the Continental O-200 engine).

  Dynon FlightDEK D180 Audio Panel Comm Radio GPS Elevator Trim Power Panel Flap Switch Key Ignition Key Ignition Key Ignition Cabin Heat 12V Xpondr aux. in Plug-In STOL CH 750 Instrument Panel STOL CH 750 Panel

Move your mouse pointer over the panel for description...

  • Dynon FlightDEK D180: Electronic Flight Information System (EFIS) and Engine Monitoring (EMS) functions onto a single 7" color screen.
  • Elevator Trim Toggle Switch / Trim Position Indicator (included in kit, left of Dynon)
  • Flap Position Switch

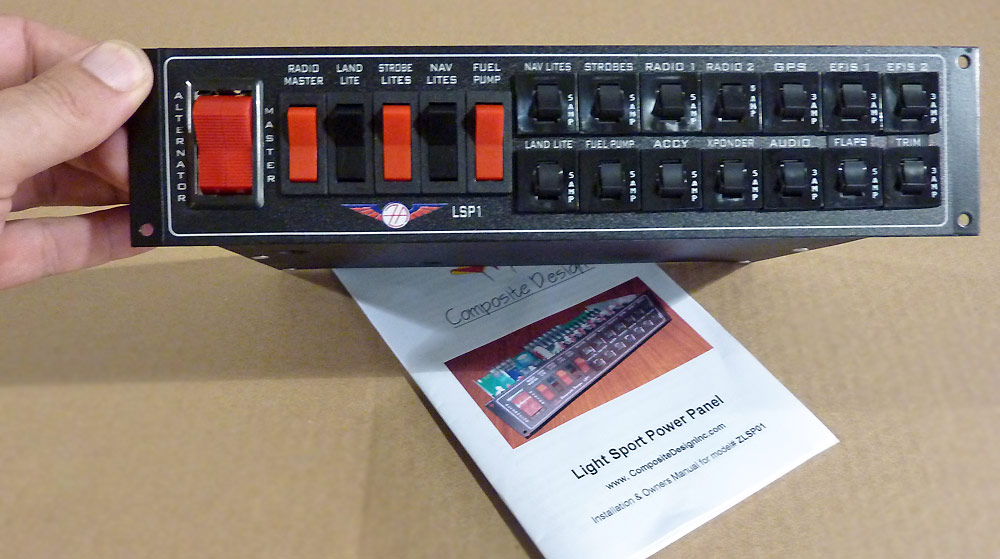

  • Self-contained Power Distribution Panel. The panel includes bus bars, switches, relays, and circuit breakers (from Composite Design).
  • Audio Panel: Garmin GMA 340 with intercom
  • Comm Radio: Garmin SL 40 Communications Radio
  • GPS: Garmin GPSMAP 496 includes satellite weather with a detailed color map and terrain alerting.
  • Transponder:  Garmin GTX 327 Mode C digital transponder (bottom right)
    •
  • Approach Fast Stack Hub and Harnesses.
NEW: Video Tour of the Instrument Panel (as equipped above)  |  Video of Instruments / Avionics Kit  |  View Sample Panel Schematic

Zenith Aircraft Company now supplies complete instrument panels and avionics kits to help builders complete their own custom instrument panels:

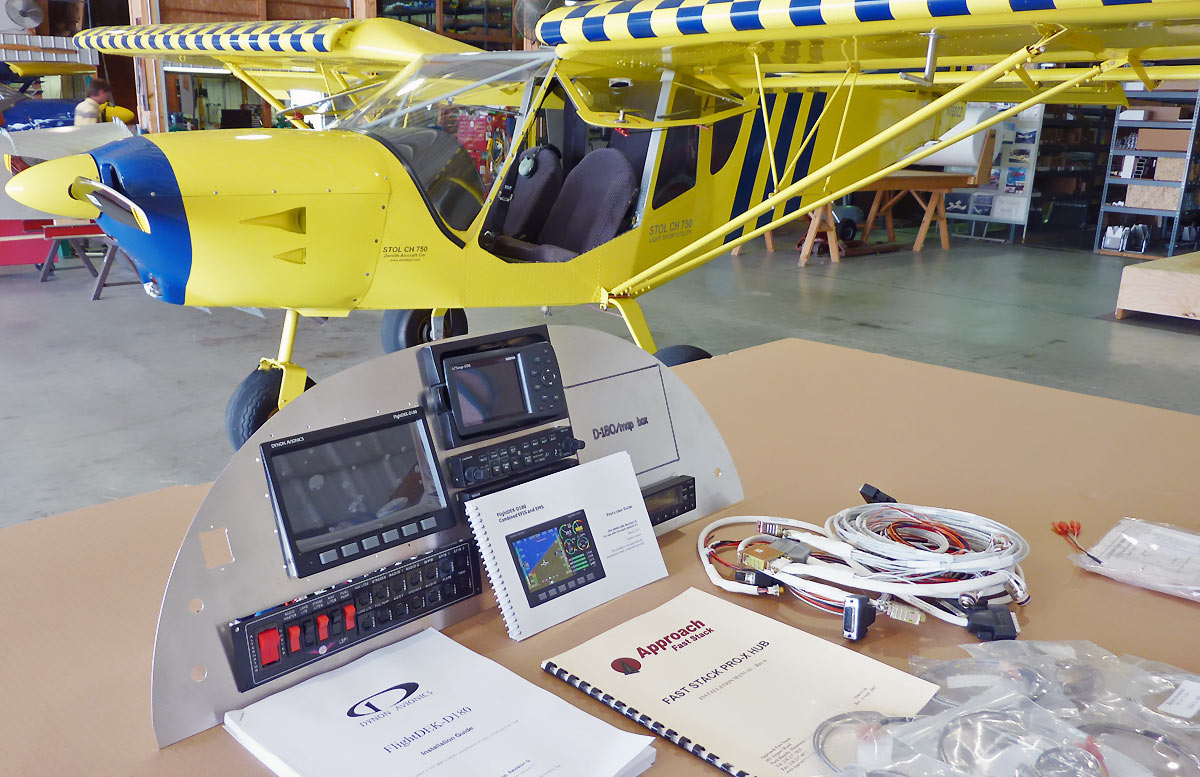

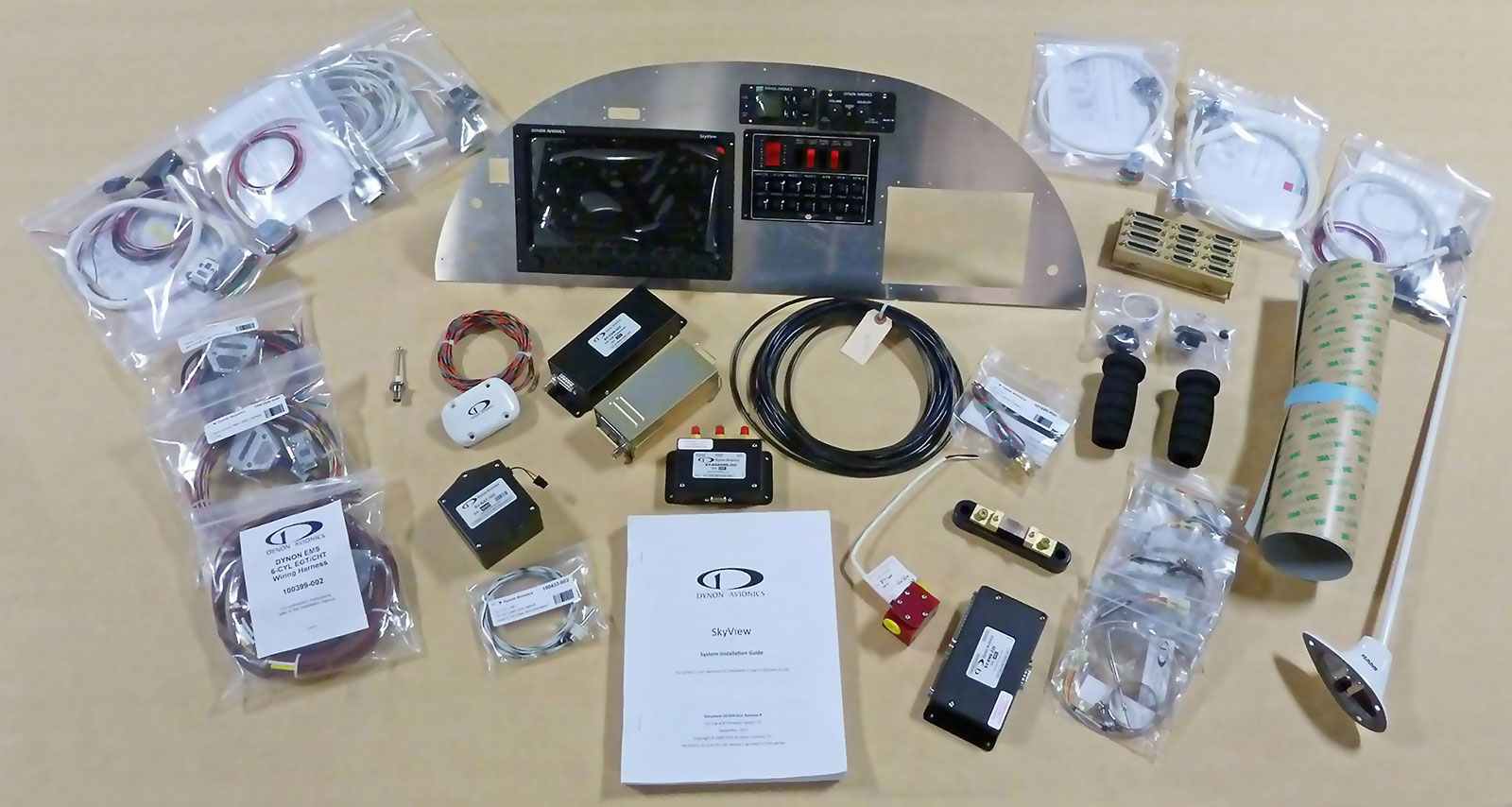

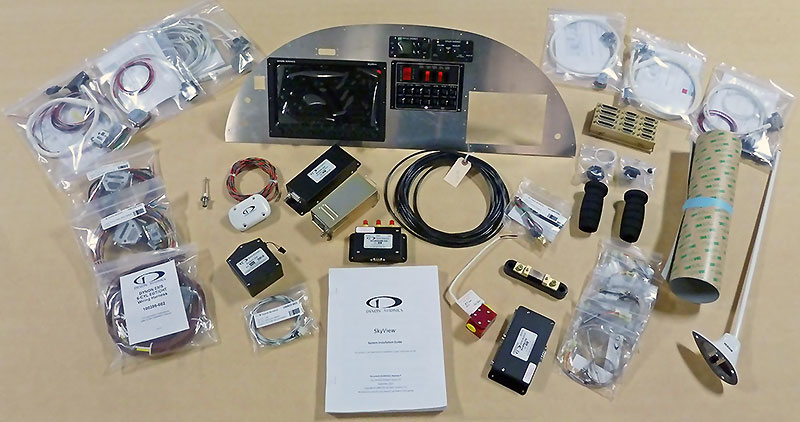

Instruments / Avionics Kit from Zenith Aircraft Company       Instruments / Avionics Kit from Zenith Aircraft Company       Custom Power Panel

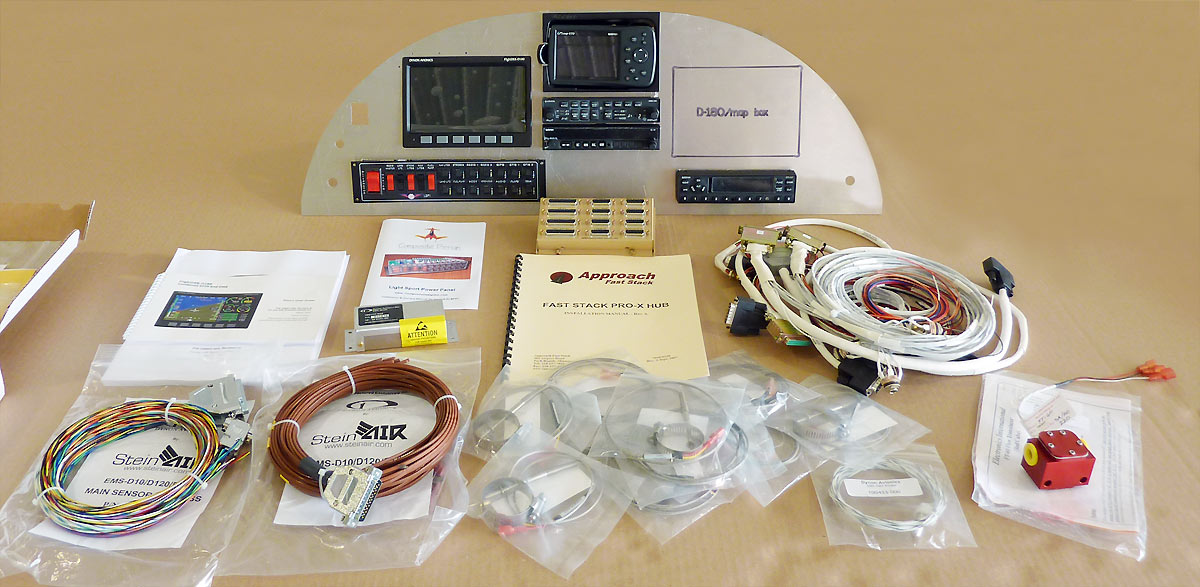

The complete Instruments / Avionics Package for the STOL CH 750, as shown above, includes the following:
  • PRE -CUT INSTRUMENT PANEL WITH COVERING
  • GARMIN SL 40 COM RADIO
  • GARMIN GMA 240
  • GARMIN GTX 327 TRANSPONDER
  • LSA POWER PANEL
  • APPROACH WIRE HARNESS
  • AIR GIZMO FOR GARMIN 496
  • GARMIN GPSMap 496
  • RAC STICK GRIPS G101

  • FLIGHTDEK-D180 SYSTEM (Super bright screen available at extra cost)

  • EMSKIT-33 for JABIRU 3300

  • FUEL FLOW TRANSDUCER

  • INTERNAL LI-LON BACKUP BATTERY

  • OUTSIDE AIR TEMP (OAT) PROBE

  • COM ANTENNA AV-10

  • TRANSPONDER ANTENNA

  • ANTENNA WIRE AND BNC CONNECTOR QTY=4

  • RG 58A/U COAXIAL CABLE - 30 FT.
