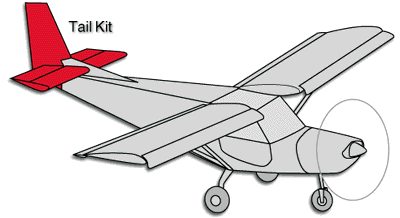

STOL CH 701 ONLINE KIT STORE: TAIL SECTION

Click here for a detailed schematic of the Horizontal Tail Assemblies.
Click here to quote / order the complete Tail Kit.

The following parts are included in the Tail Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

STOL CH 701 TAIL SECTION
Part Number	Part Description	Req. Qty	Unit Price	Inv. Code
Rudder (Vertical Tail)
7R1-1	BOTTOM RIB #1	1	$22.40	A
7R1-2	REAR RIB #2	1	$12.77	A
7R1-3	REAR RIB #3	1	$11.80	A
7R1-4	REAR RIB #4	1	$11.05	A
7R1-5	RUDDER TIP	1	$19.50	A
7R1-6	RUDDER NOSE RIB	1	$25.20	A
7R2-1	RUDDER SPAR	1	$66.20	A
7R2-2	SPAR DOUBLER	2	$14.50	A
7R2-3	RUDDER HORN	1	$33.60	A
7R2-4	UPPER RUDDER HINGE ANGLE	2	$3.20	A
7R3-1	RUDDER REAR SKIN	1	$88.50	A
7R3-2	RUDDER NOSE SKIN	1	$41.60	A
7R3-3	UPPER FAIRING	1	$6.40	A
7R3-4	LOWER SPAR FAIRING	1	$8.40	A
7R2-1A	RUDDER TIP ANGLE	1	$3.00	A
Rudder Hardware
A5	5/32" RIVET	20	$0.09	A
A4	1/8" RIVET	250	$0.08	A
AN3-10A	BOLT, SL NUT, WASHER	2	$0.75	A
AN960-10	3/16" I.D. WASHER	2	$0.04	A
AN960-416	1/4" I.D. WASHER	10	$0.03	A
S.25x .028	3/16" I.D. 4130 STEEL 17mm	1	$1.12	A
Horizontal Tail
7H1-1L	LEFT STABILIZER TIP RIB	1	$29.00	A
7H1-1R	RIGHT STABILIZER TIP RIB	1	$29.00	A
7H1-2L	LEFT STAB. FULL RIB	1	$32.10	A
7H1-2R	RIGHT STAB. FULL RIB	1	$32.10	A
7H1-3	STAB. NOSE RIB	1	$21.00	A
7H1-4L	LEFT STABILIZER REAR RIB	1	$16.00	A
7H1-4R	RIGHT STABILIZER REAR RIB	1	$16.00	A
7H1-5L	LEFT ELEVATOR TIP RIB	1	$32.52	A
7H1-5R	RIGHT ELEVATOR TIP RIB	1	$32.52	A
7H1-6L	LEFT ELEVATOR NOSE RIB	1	$15.10	A
7H1-6R	RIGHT ELEVATOR NOSE RIB	1	$15.10	A
7H1-7L	LEFT ELEVATOR REAR RIB	2	$16.98	A
7H1-7R	RIGHT ELEVATOR REAR RIB	2	$16.98	A
7H2-1	STAB. FRONT SPAR	1	$61.52	A
7H2-2	STAB. REAR SPAR	1	$57.00	A
7H2-3	UPPER SPAR DOUBLER	2	$10.60	A
7H2-4	FRONT LOWER SPAR DOUBLER	1	$10.40	A
7H2-5	REAR LOWER SPAR DOUBLER	1	$10.40	A
7H2-6	STAB. FRONT BRACKET	2	$14.50	A
7H2-7	STAB. REAR BRACKET	1	$21.04	A
7H2-8	ELEVATOR SPAR	1	$72.00	A
7H2-9	ELEVATOR CHANNEL	1	$11.90	A
7H3-1	O.B. HINGE PLATE	2	$9.10	A
7H3-2	O.B. HINGE PIN (WELDED)	2	$12.10	A
7H3-3SP	CENTER HINGE BRACKET	1	$9.50	A
7H4-1	STABILIZER SKIN	1	$102.00	A
7H4-2	ELEVATOR SKIN	1	$112.00	A
7H5-1	UPPER ELEVATOR HORN	1	$15.60	A
7H5-2	LOWER ELEVATOR HORN	1	$15.60	A
7H5-3	HORN ANGLE	1	$4.10	A
7H5-4	CENTER HINGE GUSSET	1	$13.90	A
7V6-3	REAR RIB ANGLE	1	$4.22	A
Horizontal Tail Hardware
L	L ANGLE	1	$7.10	A
A4	1/8" RIVETS	800	$0.08	A
A5	5/32" RIVETS	70	$0.09	A
AN3-5A	BOLT, SL NUT, WASHER	1	$0.70	A
AN960-10	3/16" I.D. WASHER	4	$0.04	A
AN470A3-3	3/32" SOFT SOLID RIVET	60	$0.04	A
S.25x .028	3/16" I.D. 4130 STEEL l=2.5mm	1	$0.90	A
AN380-2-2	COTTER PIN	2	$0.04	A
AN3-4A	BOLT, WASHER, NUT	4	$0.70	A
