ZODIAC XL: CANOPY

ZODIAC XL Canopy Kit and Parts

Click here to quote/order the complete Canopy Kit.

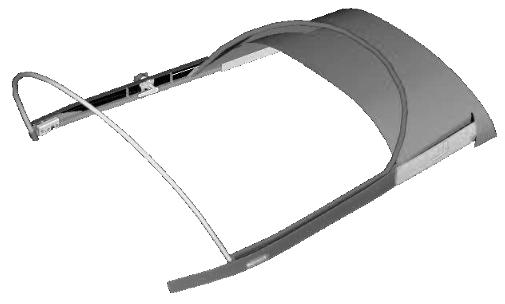

Illustrated Parts Catalog: Forward-Hinge Canopy Frame 6-XC-21
Click here for ZODIAC XL design info.

The following parts are included in the Canopy Kit. Click the box on the left of the part number to select the part. Click the Quote / Order Selected Parts button on the bottom of the page to add all selected parts to your shopping cart. Click the part number to view an illustration / details about the part. Enter the desired quantity in the shopping cart.

ZODIAC CH 601 Series - CANOPY KIT PARTS:
Part Number	Part Description (click for illustration)	Required Quantity	Unit Price	Inv.Code
6C1-1	PANEL SIDE ANGLE	2	$12.60	A
6C1-2	OUTSIDE HINGE ANGLE	2	$5.60	A
6C1-3	INSIDE HINGE EXTRUSION	2	$4.00	A
6C1-4	FORWARD TOP SKIN	1	$36.60	A
6C2-1L	LEFT STRIKER STUD WELDED ASSEMBLY	1	$16.10	A
6C2-1R	RIGHT STRIKER STUD WELDED ASSEMBLY	1	$16.10	A
6C2-2	BOTTOM BRACKET WELDED ASSEMBLY	2	$18.00	A
6C2-3/1L	LEFT CANOPY SIDE FRAME WELDED ASSEMBLY	1	$197.50	A
6C2-3/1R	RIGHT CANOPY SIDE FRAME WELDED ASSEMBLY	1	$197.50	A
6C3-1	REAR CANOPY FRAME	1	$61.40	A
6C3-2	FRONT CANOPY FRAME	1	$61.40	A
6C3-3	OUTSIDE FLASHING	2	$7.90	A
6C3-4	INSIDE ANGLE	2	$10.60	A
6C3-5	INSIDE FLASHING	2	$8.50	A
6C3-6/1	SIDE COVER	2	$15.50	A
6C3-7	FRONT FLASHING	1	$9.00	A
6C3-8	EXTRUSION HANDLE	2	$4.00	A
6C4	NON-LOCKING LATCH ASSEMBLY KIT	1	$48.50	A
6C4/1 Locking	LOCKING LATCH ASSEMBLY KIT	1	$68.25	A
6C4-1	CANOPY CABLE SUPPORT	3	$6.00	A
6C4-2	CANOPY CABLE SUPPORT FAIRLEAD	1	$4.00	A
TC	TINTED CANOPY	1	$522.00	A
9416K12	6C2-5 GAS SPRING	2	$15.60	A
9416K84	6C2-2 EYELET	4	$1.90	A
25-0700	CABLE STOP ADJUSTER w/SLEEVE ASSEMBLY	2	$3.75	A
TA-897	RUBBER TRIM (11ft)	1	$23.10	A
1x19x.0625	1/16 CABLE(10ft)	1	$11.50	A
1/16 NYLON	1/16� NYLON 66 SHEET	2	$6.80	A
AN3-5A	BOLT, WASHER, NUT	2	$0.70	A
AN3-4A	BOLT, WASHER, NUT	10	$0.70	A
AN380-2-2	COTTER PIN	4	$0.04	A
AN960-516	WASHER	10	$0.08	A
172-66	FLEXIBLE CABLE HOUSING	1	$6.00	A
NAS548P6-10	#6 SCREWS 5/8 Philip Flathead Type B	65	$0.20	A
A3236-012-24A	632 COUNTERSUNK WASHER	65	$0.20	A
AN4-14A	BOLT, NUT, WASHER	2	$0.00	A
A4	1/8� RIVETS	100	$0.08	A
